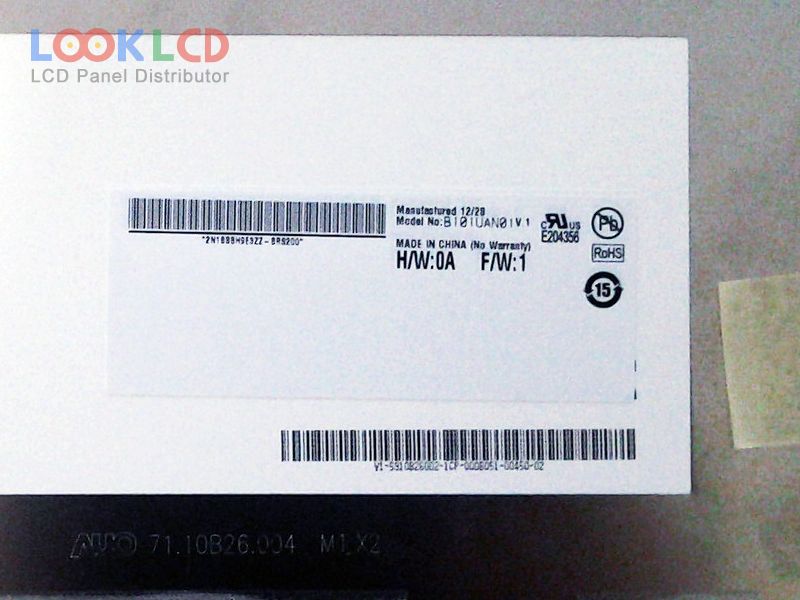

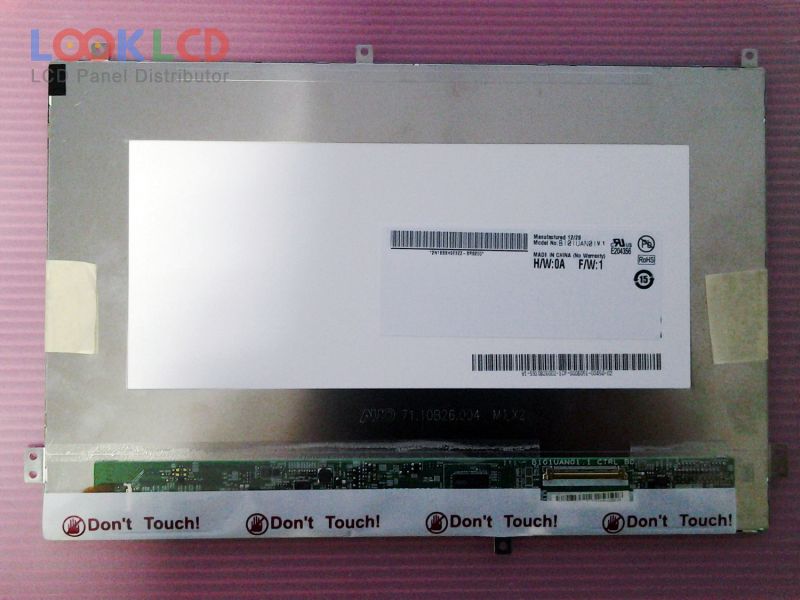

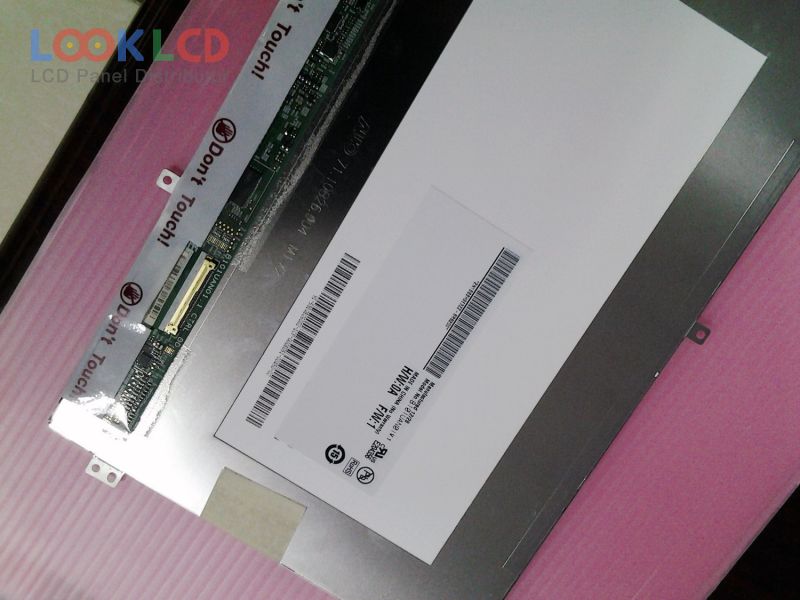

| Nomor Bagian | B101UAN01.1 |
| Merek | AUO |
| Ukuran | 10.1 |
| Aplikasi | PAD |
| Resolusi | 1920×1200 |
| Komposisi | LCM |
| Kecerahan | 400 |
| CR | 800:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | AU Optronics |
| model panel | B101UAN01.1 1 Compatible model |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 10.1 inch |
| resolusi | 1920(RGB)×1200 , WUXGA |
| mode tampilan | AHVA, Normally Black, Transmissive |
| daerah aktif | 216.81×135.5 mm |
| garis besar | 228.6×149.2×4.65 mm |
| permukaan | Glare (Haze 0%), Hard coating (3H) |
| kecerahan | 400 cd/m² (Typ.) |
| rasio kontras | 800:1 (Typ.) |
| menampilkan warna | 262K (6-bit), CIE193152% |
| waktu merespon | 25 (Typ.)(Tr+Td) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 5 stringsWLEDEmbedded (LED Driver) |
| antarmuka sinyal | LVDS (2 ch, 6-bit), 40 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | PAD |
| B101UAN01.1 | AUO | 10.1 | 1920×1200 |
| B101UAN01.7 HW0A | AUO | 10.1 | 1920×1200 |
| B101UAN01.7 HW1A | AUO | 10.1 | 1920×1200 |
| B101UAN01.7 HW2A | AUO | 10.1 | 1920×1200 |
| B101UAN01.9 | AUO | 10.1 | 1920×1200 |
| B101UAN01.C | AUO | 10.1 | 1920×1200 |
| B101UAN01.E | AUO | 10.1 | 1920×1200 |
| B101UAN07.0 | AUO | 10.1 | 1200×1920 |
| B101UAN07.2 | AUO | 10.1 | 1200×1920 |
| B101UAT02.1 | AUO | 10.1 | 1920×1200 |
| B116XAN03.1 HW1A | AUO | 11.6 | 1366×768 |
| CLAA101WJ01 | CPT | 10.1 | 1366×768 |
| EJ080NA-04A | Innolux | 8.0 | 1024×768 |
| HE070IA-04F | Innolux | 7.0 | 800×1280 |
| HE070IA-04M | Innolux | 7.0 | 800×1280 |
| LTL070NL01-002 | Samsung | 7.0 | 1024×600 |
| LTL106AL01-001 | Samsung | 10.6 | 1366×768 |
| LTN097QL01-A01 | Samsung | 9.7 | 2048×1536 |
| TV080WXM-NL0 | BOE | 8.0 | 800×1280 |
| VVX07H005A00 | Panasonic | 7.0 | 800×1280 |
