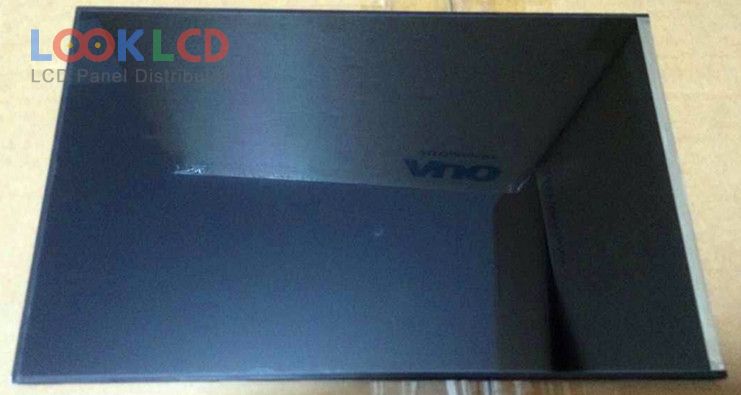

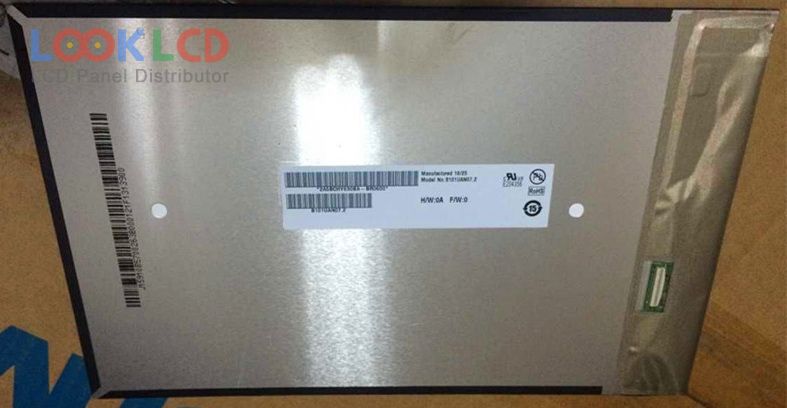

B101UAN07.2

B101UAN07.2
B101UAN07.2
B101UAN07.2 thumb B101UAN07.2 thumb
Merek
AUO
Ukuran
10.1
Aplikasi
PAD
Resolusi
1200×1920
Komposisi
LCM
Kecerahan
400
CR
1000:1
Warna
16.7M
Lampu latar
WLED
Antarmuka
MIPI
In Stock
19103
Spesifikasi

Nomor Bagian B101UAN07.2
MerekAUO
Ukuran10.1
AplikasiPAD
Resolusi1200×1920
KomposisiLCM
Kecerahan400
CR1000:1
Warna16.7M
Lampu latarWLED
AntarmukaMIPI
merek panelAUO
model panelB101UAN07.2
tipe panel a-Si TFT-LCD , LCM
ukuran panel10.1 inch
resolusi1200(RGB)×1920 , WUXGA
mode tampilanAHVA, Normally Black, Transmissive
daerah aktif135.36×216.576 mm
garis besar143×227.93×4.3 mm
permukaanGlare (Haze 0%), Hard coating
kecerahan400 cd/m² (Typ.)
rasio kontras1000:1 (Typ.)
menampilkan warna16.7M (8-bit), CIE193171%
waktu merespon25 (Typ.)(Tr+Td)
sudut pandang85/85/85/85 (Typ.)(CR≥10)(L/R/U/D)
frekuensi60Hz
jenis lampu8S4PWLEDWithout Driver
antarmuka sinyalMIPI (4 data lanes), 45 pins
tegangan masukan3.3V (Typ.)
aplikasiPAD
Model Keluarga
B101UAN01.1 AUO 10.1 1920×1200
B101UAN01.7 HW0A AUO 10.1 1920×1200
B101UAN01.7 HW1A AUO 10.1 1920×1200
B101UAN01.7 HW2A AUO 10.1 1920×1200
B101UAN01.9 AUO 10.1 1920×1200
B101UAN01.C AUO 10.1 1920×1200
B101UAN01.E AUO 10.1 1920×1200
B101UAN02.1 AUO 10.1 1920×1200
B101UAN07.0 AUO 10.1 1200×1920
B101UAT02.1 AUO 10.1 1920×1200
