AUO B101UAT02.1 lembar data, spesifikasi, stok, aplikasi www.looklcd-id.com
LookLCD LookLCD

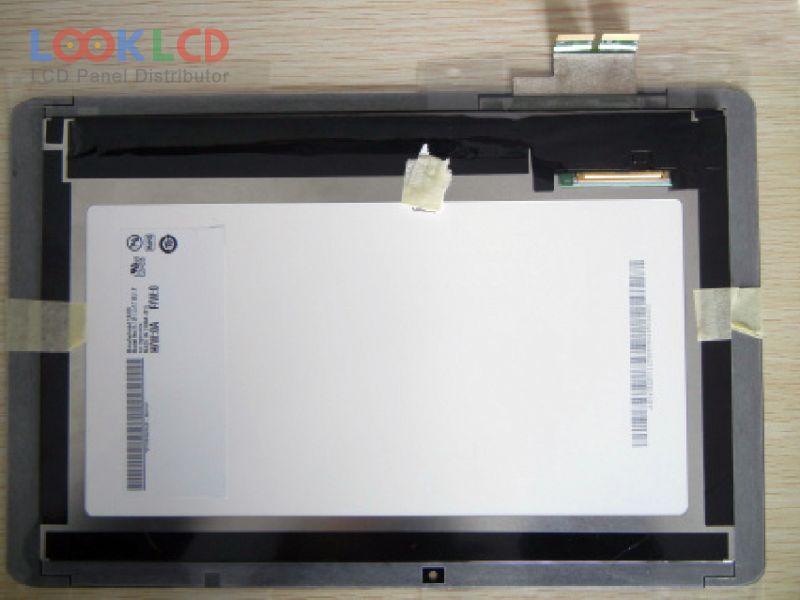

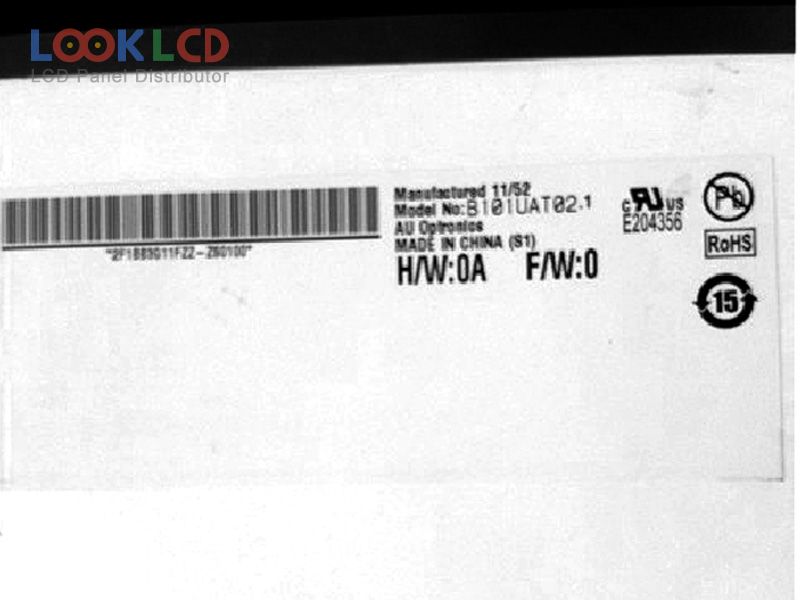

B101UAT02.1

B101UAT02.1
B101UAT02.1
B101UAT02.1 thumb B101UAT02.1 thumb
Merek
AUO
Ukuran
10.1
Aplikasi
PAD
Resolusi
1920×1200
Komposisi
LCM
Kecerahan
CR
800:1
Warna
16.7M
Lampu latar
WLED
Antarmuka
LVDS
In Stock
7404
Spesifikasi

Nomor Bagian B101UAT02.1
MerekAUO
Ukuran10.1
AplikasiPAD
Resolusi1920×1200
KomposisiLCM
Kecerahan
CR800:1
Warna16.7M
Lampu latarWLED
AntarmukaLVDS
merek panelAUO
model panelB101UAT02.1
tipe panel a-Si TFT-LCD , LCM
ukuran panel10.1 inch
resolusi1920(RGB)×1200 , WUXGA
mode tampilanAHVA, Normally Black, Transmissive
daerah aktif216.81×135.5 mm
permukaan
kecerahan
rasio kontras800:1 (Typ.)
menampilkan warna16.7M (8-bit)
waktu merespon13/12 (Typ.)(Tr/Td)
sudut pandang89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
frekuensi60Hz
jenis lampuWLED
antarmuka sinyalLVDS (2 ch, 8-bit)
aplikasiPAD
Model Keluarga
B101UAN01.1 AUO 10.1 1920×1200
B101UAN01.7 HW0A AUO 10.1 1920×1200
B101UAN01.7 HW1A AUO 10.1 1920×1200
B101UAN01.7 HW2A AUO 10.1 1920×1200
B101UAN01.9 AUO 10.1 1920×1200
B101UAN01.E AUO 10.1 1920×1200
B101UAN02.1 AUO 10.1 1920×1200
B101UAN07.0 AUO 10.1 1200×1920
B101UAN07.2 AUO 10.1 1200×1920
B101UAT02.1 AUO 10.1 1920×1200
