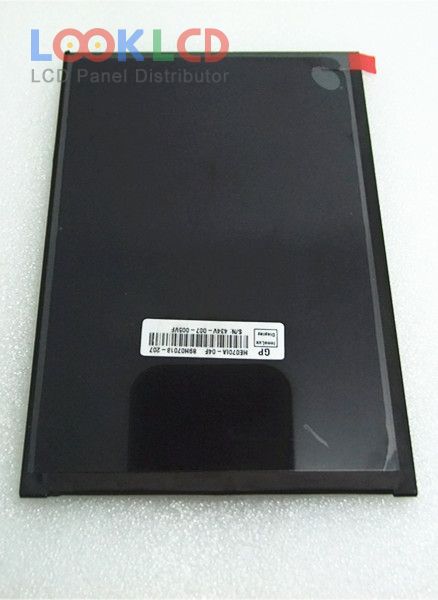

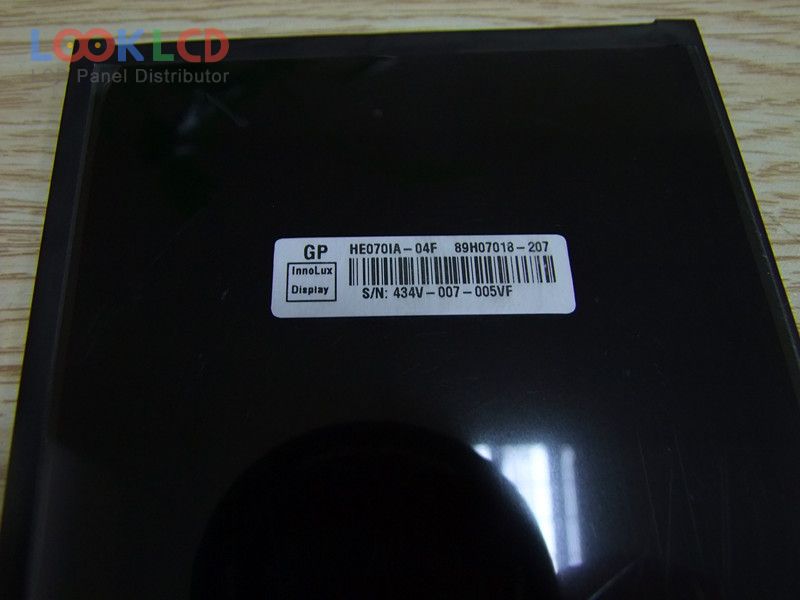

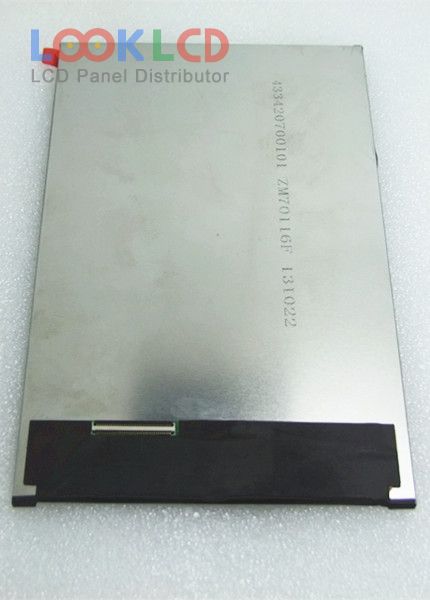

| Nomor Bagian | HE070IA-04F |
| Merek | Innolux |
| Ukuran | 7.0 |
| Aplikasi | PAD |
| Resolusi | 800×1280 |
| Komposisi | CELL |
| Kecerahan | 0 |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | No B/L |
| Antarmuka | LVDS |
| merek panel | CHIMEI INNOLUX |
| model panel | HE070IA-04F |
| tipe panel | a-Si TFT-LCD , CELL |
| ukuran panel | 7.0 inch |
| resolusi | 800(RGB)×1280 , WXGA |
| mode tampilan | IPS, Normally Black, Transmissive |
| daerah aktif | 94.2×150.72 mm |
| garis besar | 101.5×159.52×0.82 mm |
| permukaan | Hard coating |
| kedalaman kaca | 0.25+0.25 mm |
| keterusan | 4.96% (Typ.)(with Polarizer) |
| rasio kontras | 800:1 (Typ.) |
| menampilkan warna | 16.7M (8-bit), CIE193160% |
| waktu merespon | 50 (Typ.)(Tr+Td) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| antarmuka sinyal | LVDS (1 ch, 8-bit), 40 pins |
| tegangan masukan | 3.3/8.8/-7.0/22V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplikasi | PAD |
