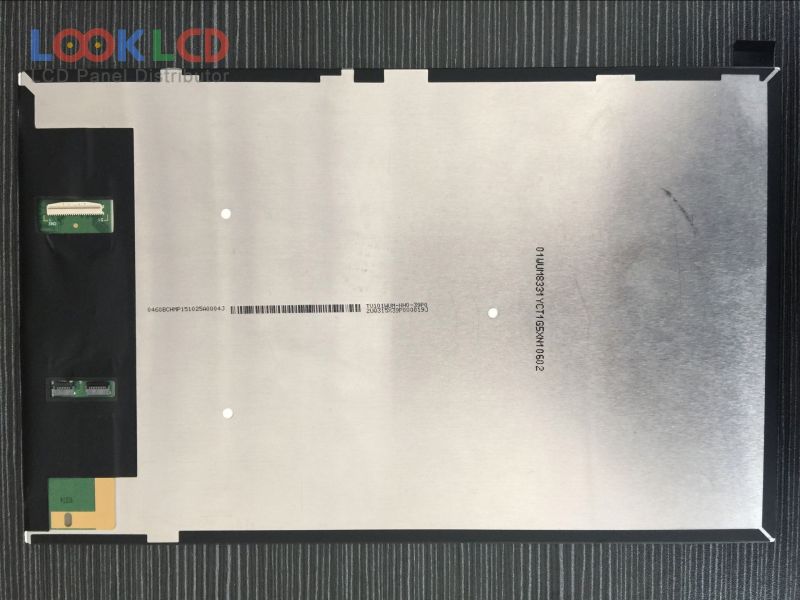

| Nomor Bagian | TV101WUM-NH0 |
| Merek | BOE |
| Ukuran | 10.1 |
| Aplikasi | PAD |
| Resolusi | 1200×1920 |
| Komposisi | LCM |
| Kecerahan | 400 |
| CR | 900:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | MIPI |
| merek panel | BOE |
| model panel | TV101WUM-NH0 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 10.1 inch |
| resolusi | 1200(RGB)×1920 , WUXGA |
| mode tampilan | ADS, Normally Black, Transmissive |
| daerah aktif | 135.36×216.576 mm |
| garis besar | 143×227.93 mm |
| permukaan | |
| kecerahan | 400 cd/m² (Typ.) |
| rasio kontras | 900:1 (Typ.) |
| menampilkan warna | 16.7M (8-bit), CIE193170% |
| waktu merespon | 25 (Typ.)(Tr+Tf) |
| sudut pandang | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 8S4PWLEDWithout Driver |
| antarmuka sinyal | MIPI (4 data lanes), 39 pins |
| tegangan masukan | 3.3/3.8V (Typ.)(VDD/VBAT) |
| aplikasi | PAD |
