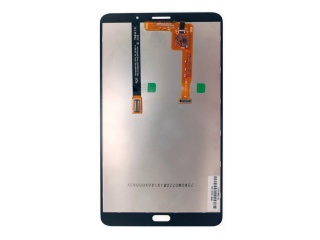

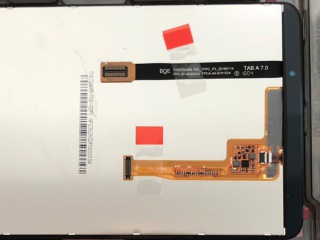

| Nomor Bagian | TV070WXM-TS0 |
| Merek | BOE |
| Ukuran | 7.0 |
| Aplikasi | Pad & Tablet |
| Resolusi | 800×1280 |
| Komposisi | Assembly , a-Si TF |
| Kecerahan | |
| CR | 900:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | |
| pabrikan | BOE |
| ukuran layar | 7.0 inch |
| nomor piksel | 800(RGB)×1280 (WXGA) 215PPI |
| area aktif (mm) | 94.2 × 150.72 (H×V) |
| area bezel (mm) | - |
| pencahayaan | 400 (Typ.)(cd/m²) |
| sudut pandang | 80/80/80/80 (Typ.)(CR≥10) |
| pemandangan bagus di | Symmetry |
| kedalaman warna | 16.7M 50% NTSC |
| massa | 74.5g (Typ.) |
| tingkat penyegaran | 60Hz |
| nama model | TV070WXM-TS0 |
| tipe layar | Assembly , a-Si TFT-LCD |
| pengaturan | RGB Vertical Stripe |
| garis besar (mm) | 104.557 × 182.85 × 5.18 (H×V×D) |
| perlakuan | Antiglare (Haze 25%), Hard coating |
| rasio kontras | 900 : 1 (Typ.) (TM) |
| mode kerja | - |
| tanggapan | 25 (Typ.)(Tr+Td) ms |
| lampu latar | WLED , 20K hours , No Driver |
| digunakan untuk | Pad & Tablet |
| layar sentuh | On-Cell Touch |
