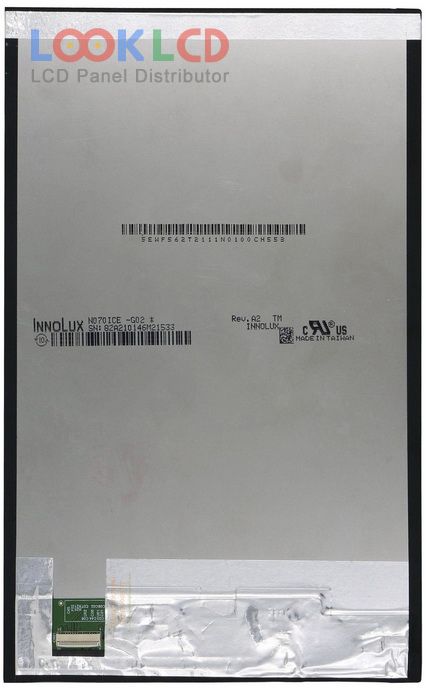

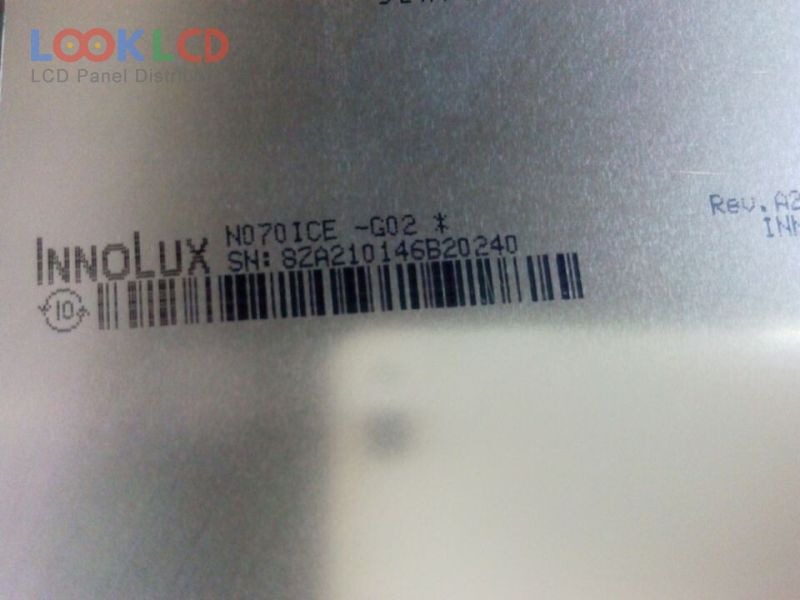

| Nomor Bagian | N070ICE-G02 Rev.A2 |
| Merek | Innolux |
| Ukuran | 7.0 |
| Aplikasi | PAD |
| Resolusi | 800×1280 |
| Komposisi | LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | MIPI |
| merek panel | INNOLUX |
| model panel | N070ICE-G02 Rev.A2 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 7.0 inch |
| resolusi | 800(RGB)×1280 , WXGA |
| mode tampilan | AAS, Normally Black, Transmissive |
| daerah aktif | 94.2×150.72 mm |
| garis besar | 103.5×162.22×4.51 mm |
| permukaan | |
| kecerahan | |
| rasio kontras | 800:1 (Typ.) |
| menampilkan warna | 16.7M (8-bit), CIE193160% |
| waktu merespon | 11/9 (Typ.)(Tr/Td) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | WLEDWithout Driver |
| antarmuka sinyal | MIPI (4 data lanes), 31 pins |
| tegangan masukan | 1.8/3.3V (Typ.)(VDDI/VCI) |
| aplikasi | PAD |
| AT070TN83 V.1 | Innolux | 7.0 | 800×480 |
| CLAA070ND02 | CPT | 7.0 | 1024×600 |
| CLAA070ND22CW | CPT | 7.0 | 1024×600 |
| DLC0700OZG-T-1 | Other | 7.0 | 800×480 |
| LA070WV6-SL01 | LG Display | 7.0 | 800×480 |
| LW700AT9309 | Innolux | 7.0 | 800×480 |
| N070ICE-G02 Rev.A2 | Innolux | 7.0 | 800×1280 |
| N070ICE-G02 Rev.C3 | Innolux | 7.0 | 800×1280 |
| N070ICE-GB1 | Innolux | 7.0 | 800×1280 |
| N070ICE-GB2 | Innolux | 7.0 | 800×1280 |
| HQ097QX1-IPS | Other | 9.7 | 2048×1536 |
| LP116WH4-SLN1 | LG Display | 11.6 | 1366×768 |
| LPM070W425D | JDI | 7.0 | 1200×1920 |
| LTL070NL01-801 | Samsung | 7.0 | 1024×600 |
| LTL089CL02-001 | Samsung | 8.9 | 1920×1200 |
| LTL089CL02-W02 | Samsung | 8.9 | 1920×1200 |
| LTL101AL06-002 | Samsung | 10.1 | 1280×800 |
| LTN101AL03-801 | Samsung | 10.1 | 1280×800 |
| N080ICE-GB0 Rev.A1 | Innolux | 8.0 | 800×1280 |
| TFTMD089030 | JDI | 8.9 | 2560×1600 |
