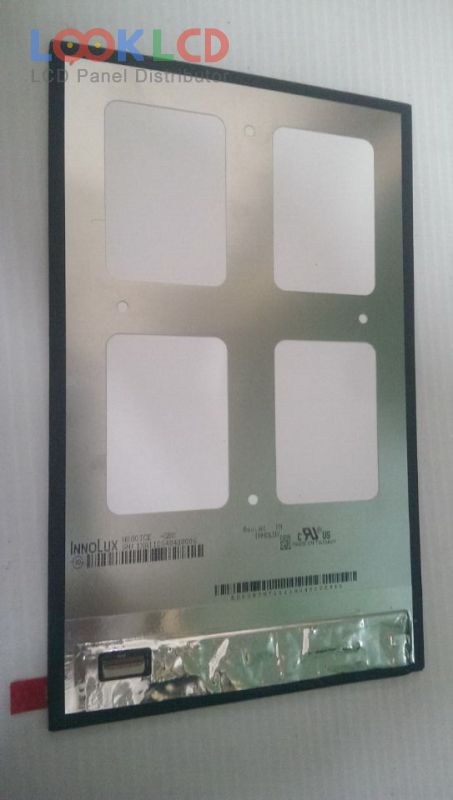

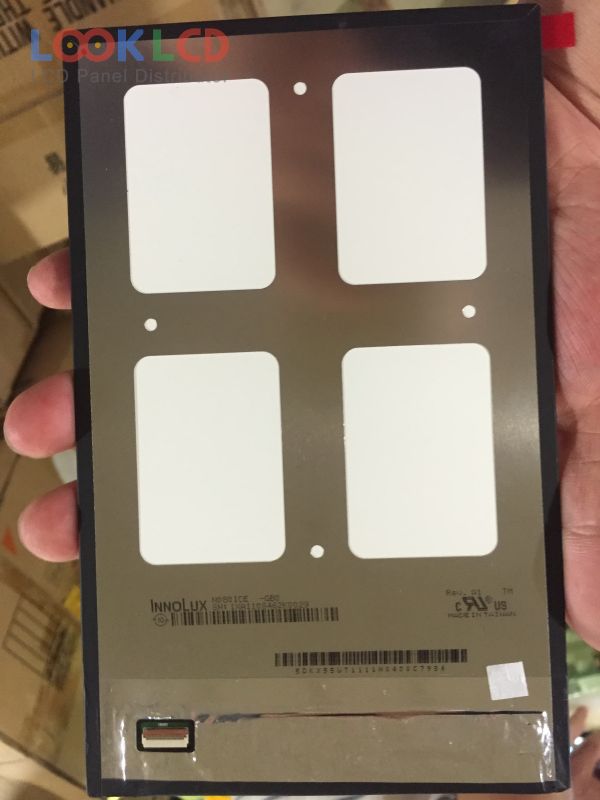

N080ICE-GB0 Rev.A1

N080ICE-GB0 Rev.A1
N080ICE-GB0 Rev.A1
N080ICE-GB0 Rev.A1 thumb N080ICE-GB0 Rev.A1 thumb
Merek
Innolux
Ukuran
8.0
Aplikasi
PAD
Resolusi
800×1280
Komposisi
LCM
Kecerahan
400
CR
800:1
Warna
16.7M
Lampu latar
WLED
Antarmuka
MIPI
In Stock
1720
Spesifikasi

Nomor Bagian N080ICE-GB0 Rev.A1
MerekInnolux
Ukuran8.0
AplikasiPAD
Resolusi800×1280
KomposisiLCM
Kecerahan400
CR800:1
Warna16.7M
Lampu latarWLED
AntarmukaMIPI
merek panelINNOLUX
model panelN080ICE-GB0 Rev.A1
tipe panel a-Si TFT-LCD , LCM
ukuran panel8.0 inch
resolusi800(RGB)×1280 , WXGA
mode tampilanAAS, Normally Black, Transmissive
daerah aktif107.64×172.224 mm
garis besar114.58×184.09×4.06 mm
permukaanHard coating, Antireflection
kecerahan400 cd/m² (Typ.)
rasio kontras800:1 (Typ.)
menampilkan warna16.7M (8-bit), CIE193160%
waktu merespon20 (Typ.)(Tr+Td)
sudut pandang89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
frekuensi60Hz
jenis lampu4 stringsWLEDWithout Driver
antarmuka sinyalMIPI (4 data lanes), 31 pins
tegangan masukan1.8/3.3V (Typ.)(VDDI/VCI)
aplikasiPAD
