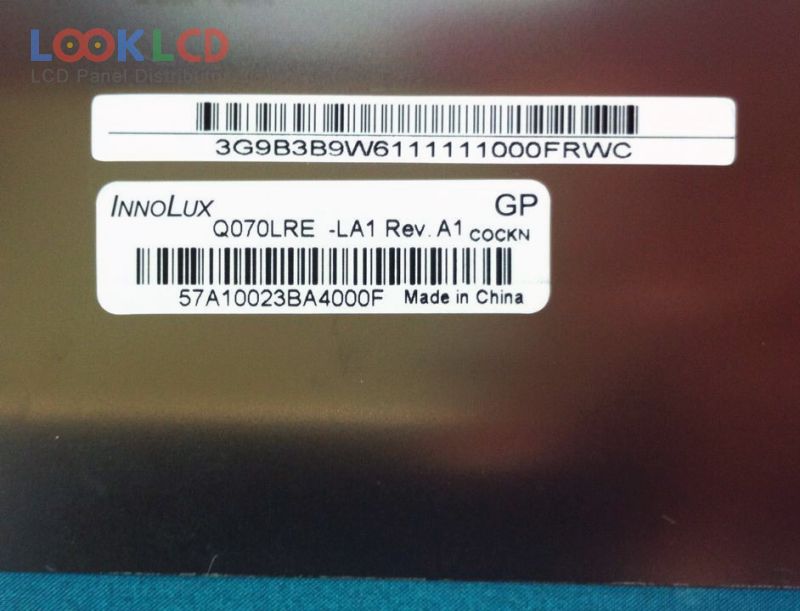

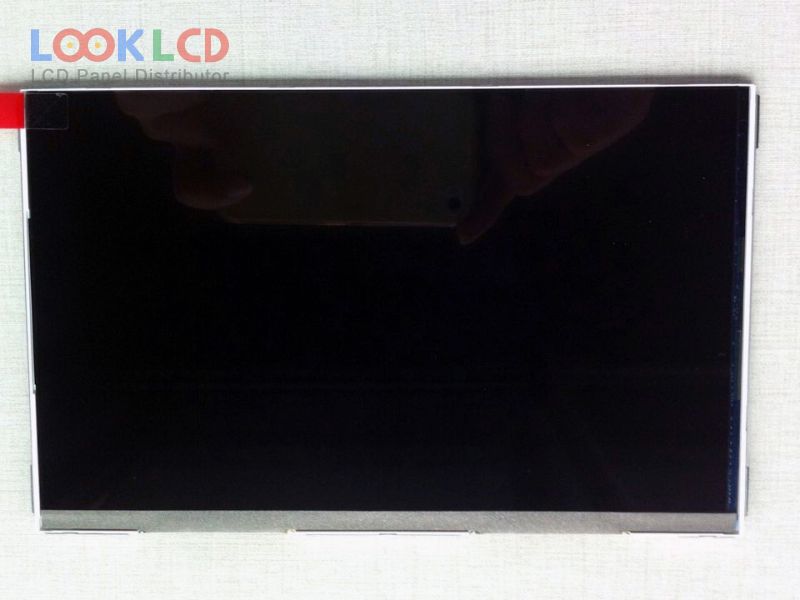

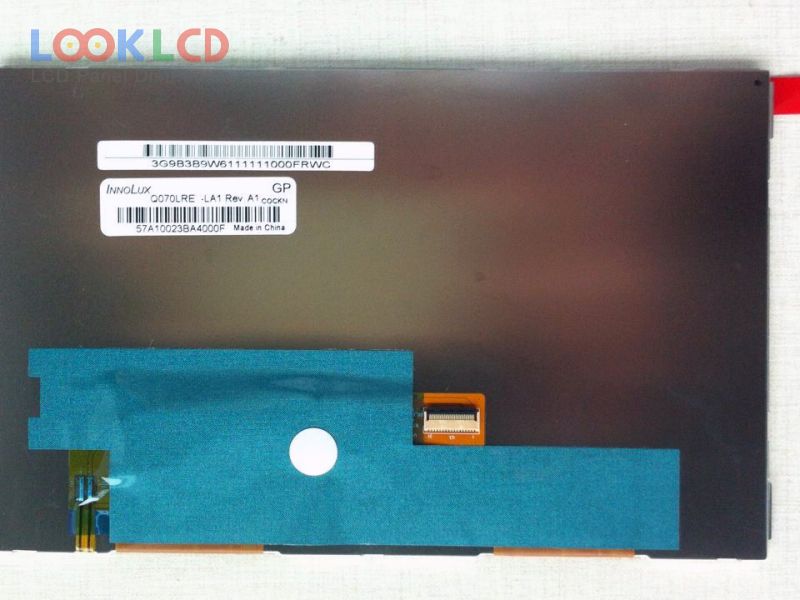

| Nomor Bagian | Q070LRE-LA1 |
| Merek | Innolux |
| Ukuran | 7.0 |
| Aplikasi | PAD |
| Resolusi | 1024×600 |
| Komposisi | LCM |
| Kecerahan | 350 |
| CR | 700:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | CHIMEI INNOLUX |
| model panel | Q070LRE-LA1 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 7.0 inch |
| resolusi | 1024(RGB)×600 , WSVGA |
| mode tampilan | IPS, Normally Black, Transmissive |
| daerah aktif | 153.6×90 mm |
| garis besar | 164.1×102.6×3.25 mm |
| permukaan | Glare (Haze 0%) |
| kecerahan | 350 cd/m² (Typ.) |
| rasio kontras | 700:1 (Typ.) |
| menampilkan warna | 16.7M (8-bit), CIE193150% |
| waktu merespon | 30 (Typ.)(Tr+Td) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 4S5PWLEDWithout Driver |
| antarmuka sinyal | LVDS (1 ch, 8-bit), 31 pins |
| tegangan masukan | 3.7V (Typ.) |
| aplikasi | PAD |
