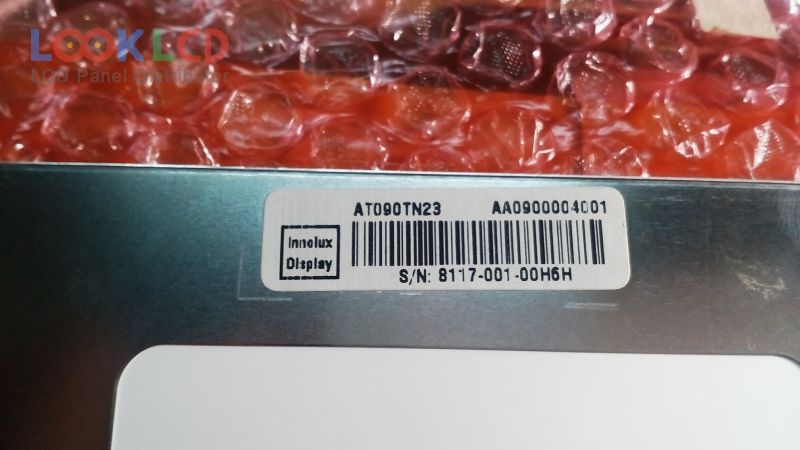

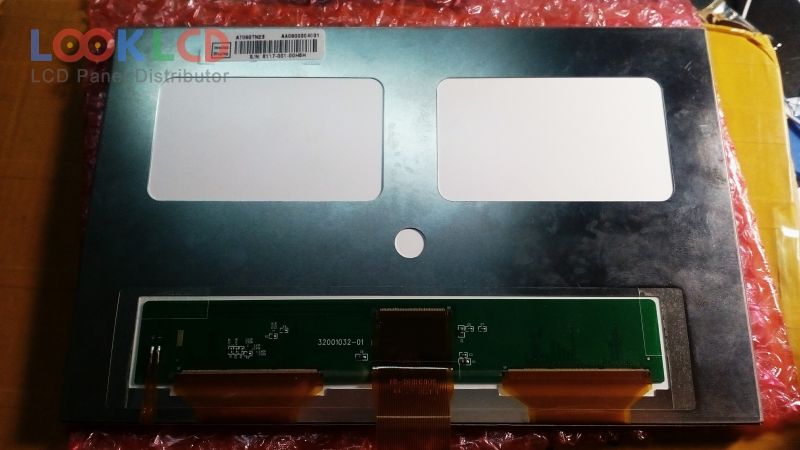

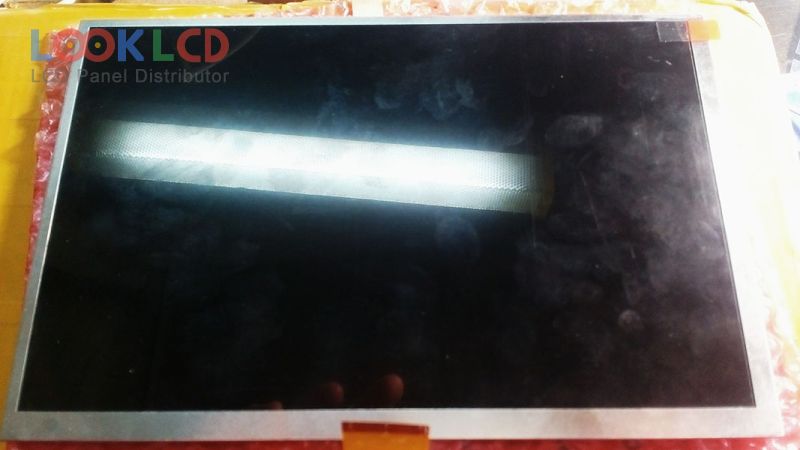

| Nomor Bagian | AT090TN23 |
| Merek | Innolux |
| Ukuran | 9.0 |
| Aplikasi | PAD |
| Resolusi | 1280×800 |
| Komposisi | LCM |
| Kecerahan | 340 |
| CR | 700:1 |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | CHIMEI INNOLUX |
| model panel | AT090TN23 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 9.0 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 193.92×121.2 mm |
| garis besar | 206.76×135.06 mm |
| permukaan | |
| kecerahan | 340 cd/m² (Typ.) |
| rasio kontras | 700:1 (Typ.) |
| menampilkan warna | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193170% |
| waktu merespon | 10/15 (Typ.)(Tr/Td) |
| sudut pandang | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | WLEDWithout Driver |
| antarmuka sinyal | LVDS (1 ch, 6/8-bit), 40 pins |
| tegangan masukan | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VHL) |
| aplikasi | PAD |
