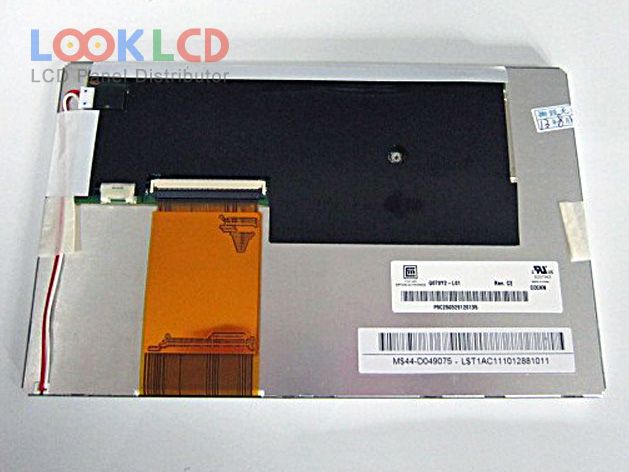

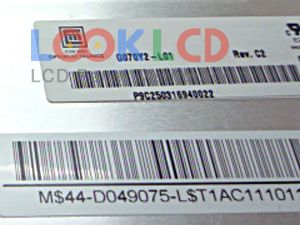

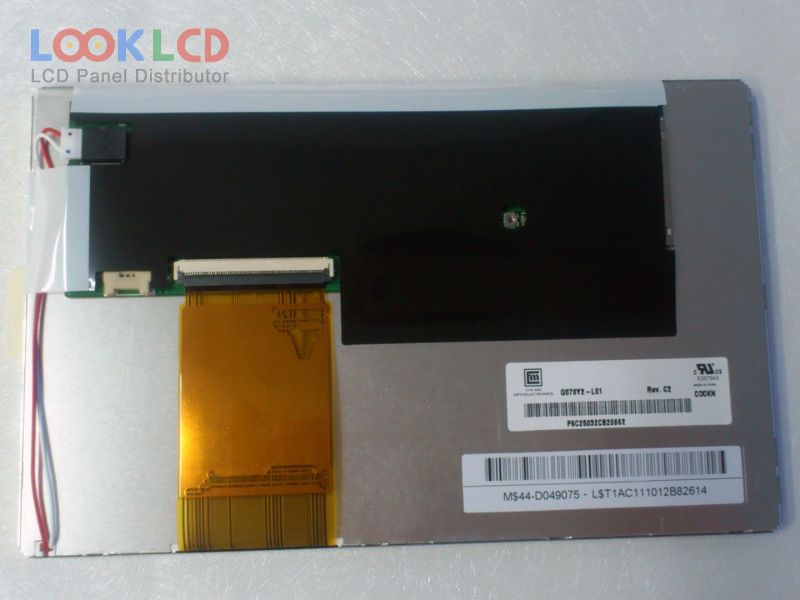

| Nomor Bagian | G070Y2-L01 |
| Merek | Innolux |
| Ukuran | 7.0 |
| Aplikasi | CNS |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 500 |
| CR | 600:1 |
| Warna | 262K/16.2M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | CMO |
| model panel | G070Y2-L01 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 7.0 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 152.4×91.44 mm |
| garis besar | 165×104×9.83 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 500 cd/m² (Typ.) |
| rasio kontras | 600:1 (Typ.) |
| menampilkan warna | 262K/16.2M (6-bit / 6-bit + FRC), CIE193172% |
| waktu merespon | 5/11 (Typ.)(Tr/Td) |
| sudut pandang | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antarmuka sinyal | LVDS (1 ch, 6/8-bit), 20 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | CNS |
