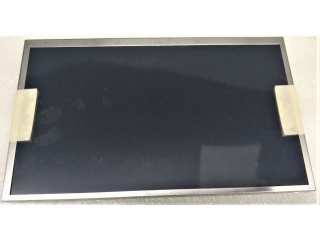

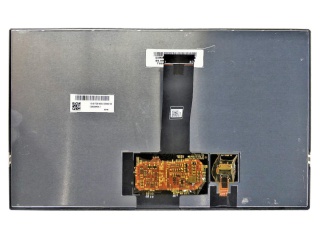

| Nomor Bagian | C090EAN04.1 |
| Merek | AUO |
| Ukuran | 9.0 |
| Aplikasi | Outdoor High Brightn |
| Resolusi | 1280×720 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek | AUO |
| model | C090EAN04.1 |
| ukuran diagonal | 9.0 inch |
| jenis | a-Si TFT-LCD, LCM |
| format piksel | 1280(RGB)×720 [WXGA] 163PPI |
| konfigurasi | RGB Vertical Stripe |
| daerah aktif | 198.72(H)×111.78(V) mm |
| garis besar redup. | 212.2(H)×127.9(V) ×11(D) mm |
| daerah bezel | 202.02(H)×115.78(V) mm |
| perlakuan | Antiglare |
| pencahayaan | 900 cd/m² (Typ.) |
| rasio kontras | 1000:1 (Typ.) (TM) |
| arah pandangan | Symmetry |
| waktu merespon | 30 (Typ.)(Tr+Td) |
| sudut pandang | 80/80/80/80 (Typ.)(CR≥10) |
| Modus operasi | AHVA, Normally Black, Transmissive |
| warna pendukung | 16.7M 72% NTSC |
| sumber cahaya | WLED [8S3P] , 10K hours , W/O Driver |
| berat | TBD |
| dirancang untuk | Outdoor High Brightness Automotive Display |
| kecepatan bingkai | 60Hz |
| panel sentuh | Without |
| tipe antarmuka | LVDS (1 ch, 8-bit) , 40 pins FPC |
| Sumber Daya listrik | 3.3V (Typ.) |
| lingkungan | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
