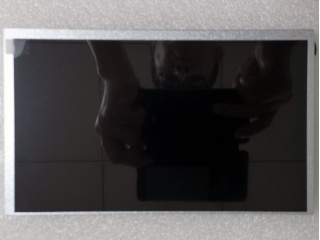

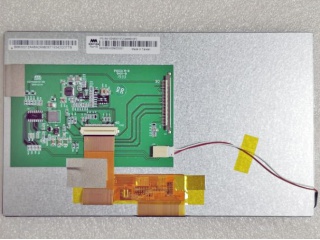

| Nomor Bagian | AM-1024600Y3TZQW-A0H |
| Merek | AMPIRE |
| Ukuran | 9.0 |
| Aplikasi | Industrial |
| Resolusi | 1024×600 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | AMPIRE |
| model panel | AM-1024600Y3TZQW-A0H |
| ukuran panel | 9.0" |
| tipe panel | a-Si TFT-LCD, LCM |
| resolusi | 1024(RGB)×600, WSVGA, 132PPI |
| format piksel | RGB Vertical Stripe |
| area tampilan | 196.6(W)×114.1(H) mm |
| bukaan bezel | 200(W)×117.55(H) mm |
| ukuran garis besar | 211.1(W)×126.5(H) ×11(D) mm |
| permukaan | - |
| kecerahan | 500 cd/m² (Typ.) |
| rasio kontras | 800:1 (Typ.) (TM) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| mode tampilan | Normally Black, Transmissive |
| tampilan terbaik di | Symmetry |
| waktu merespon | 18/17 (Typ.)(Tr/Td) |
| menampilkan warna | 16.7M |
| jenis lampu | WLED , With LED Driver |
| frekuensi | 60Hz |
| layar sentuh | Without |
| berat panel | TBD |
| aplikasi | Industrial |
| antarmuka sinyal | LVDS (1 ch, 8-bit) , 30 pins Connector |
| tegangan masukan | 3.3V (Typ.) |
| lingkungan | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
