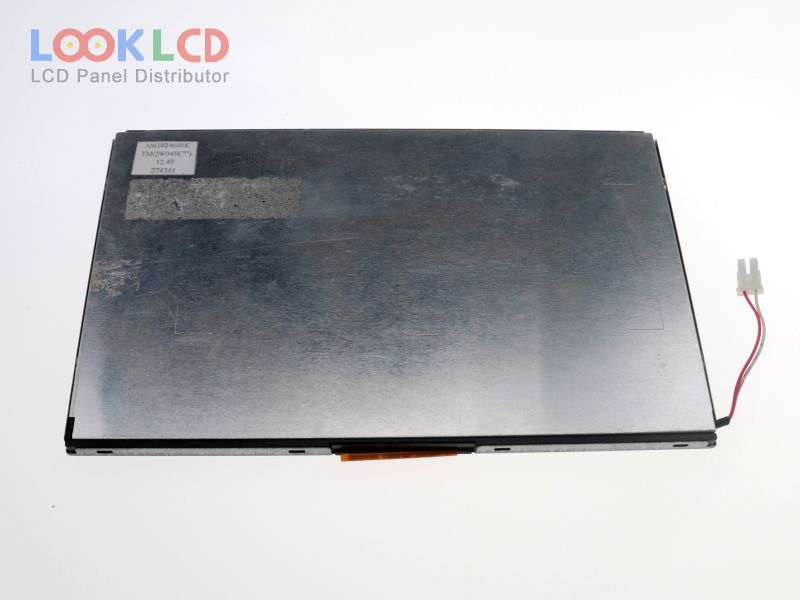

| Nomor Bagian | AM-1024600KTMQW-04H |
| Merek | AMPIRE |
| Ukuran | 7.0 |
| Aplikasi | CNS |
| Resolusi | 1024×600 |
| Komposisi | LCM |
| Kecerahan | 1000 |
| CR | 700:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | AMPIRE |
| model panel | AM-1024600KTMQW-04H |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 7.0 inch |
| resolusi | 1024(RGB)×600 , WSVGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 153.6×90 mm |
| garis besar | 165.5×104.44×5.3 mm |
| permukaan | Glare (Haze 0%), Hard coating |
| kecerahan | 1000 cd/m² (Typ.) |
| rasio kontras | 700:1 (Typ.) |
| menampilkan warna | 16.7M (8-bit) |
| waktu merespon | 10/15 (Typ.)(Tr/Td) |
| sudut pandang | 75/75/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 8S3PWLEDWithout Driver |
| antarmuka sinyal | LVDS (1 ch, 8-bit), 39 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | CNS |
