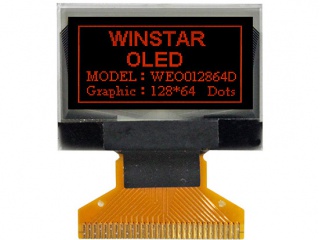

| Nomor Bagian | WEO012864DR |
| Merek | Winstar |
| Ukuran | 0.96 |
| Aplikasi | Handheld & PDA H |
| Resolusi | 128×64 |
| Komposisi | PM-OLED, OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Red) |
| Lampu latar | self |
| Antarmuka | 8-bit |
| merek panel | Winstar |
| model panel | WEO012864DR |
| ukuran panel | 0.96" |
| tipe panel | PM-OLED, OLED |
| resolusi | 128×64, 149PPI |
| format piksel | Rectangle |
| area tampilan | 21.738(W)×10.858(H) mm |
| bukaan bezel | 23.938(W)×12.058(H) mm |
| ukuran garis besar | 26.7(W)×19.26(H) ×1.81(D) mm |
| permukaan | - |
| sudut pandang | - |
| mode tampilan | - |
| tampilan terbaik di | Symmetry |
| waktu merespon | - |
| menampilkan warna | Mono(Red) |
| jenis lampu | self |
| frekuensi | - |
| layar sentuh | Without |
| ic pengemudi | COG Built-in SSD1306BZ |
| berat panel | - |
| aplikasi | Handheld & PDA Healthcare Instruments & Meters |
| antarmuka sinyal | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 30 pins FPC |
| tegangan masukan | 3.0V (Typ.) |
