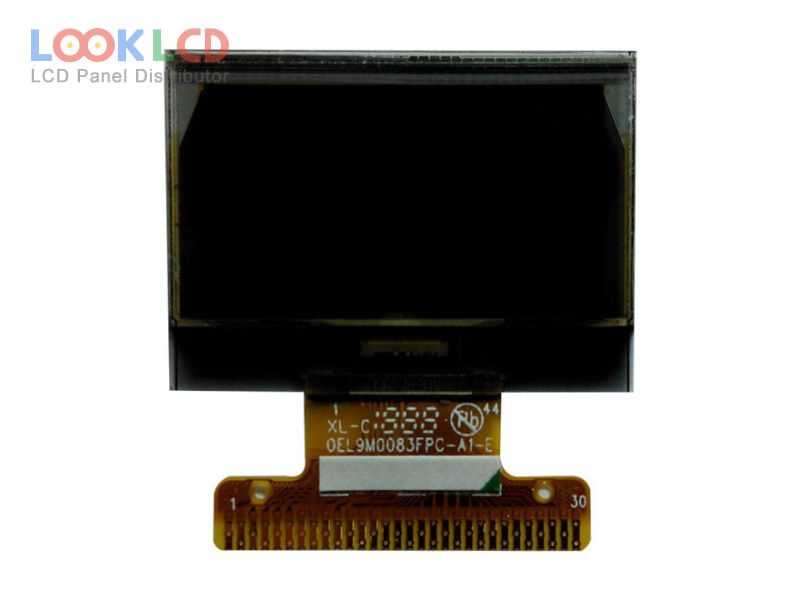

OEL9M0083-G-E

OEL9M0083-G-E
OEL9M0083-G-E thumb
Merek
Other
Ukuran
0.96
Aplikasi
Resolusi
128×64
Komposisi
OLED
Kecerahan
CR
10000:1
Warna
Mono(Green)
Lampu latar
self
Antarmuka
CPU/SPI/I²C
In Stock
13185
Spesifikasi

Nomor Bagian OEL9M0083-G-E
MerekOther
Ukuran0.96
Aplikasi
Resolusi128×64
KomposisiOLED
Kecerahan
CR10000:1
WarnaMono(Green)
Lampu latarself
AntarmukaCPU/SPI/I²C
merek panelTRULY
model panelOEL9M0083-G-E
tipe panel PM-OLED , OLED
ukuran panel0.96 inch
resolusi128×64
daerah aktif21.74×11.175 mm
garis besar26.7×19.26×1.65 mm
permukaan
kecerahan
rasio kontras10000 : 1 (Min.)
menampilkan warnaMono(Green) (1-bit)
sudut pandang80/80/80/80 (Min.)(L/R/U/D)
frekuensi100Hz
ic pengemudiCOG Built-in SH1106G
antarmuka sinyal8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins
