OEL9M0065-W-E

OEL9M0065-W-E

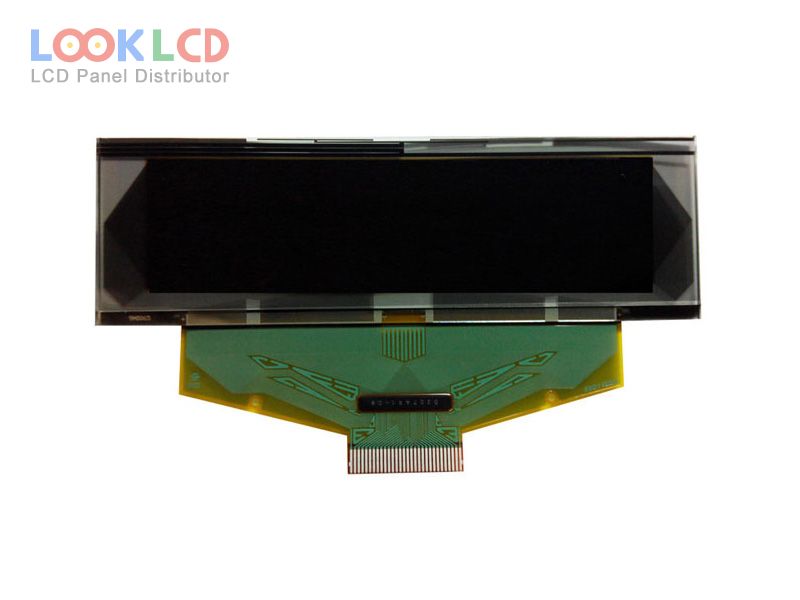

OEL9M0065-W-E thumb
Merek
Other
Ukuran
2.7
Aplikasi
IA
Resolusi
256×64
Komposisi
OLED
Kecerahan
CR
10000:1
Warna
Grayscale(W)
Lampu latar
self
Antarmuka
CPU/SPI
In Stock
15700
Spesifikasi

Nomor Bagian OEL9M0065-W-E
MerekOther
Ukuran2.7
AplikasiIA
Resolusi256×64
KomposisiOLED
Kecerahan
CR10000:1
WarnaGrayscale(W)
Lampu latarself
AntarmukaCPU/SPI
merek panelTRULY
model panelOEL9M0065-W-E 1 Compatible model
tipe panel PM-OLED , OLED
ukuran panel2.7 inch
resolusi256×64
daerah aktif66.53×16.61 mm
garis besar82×25.5×1.6 mm
permukaan
kecerahan
rasio kontras10000 : 1 (Min.)
menampilkan warnaGrayscale(W) (4-bit)
sudut pandang80/80/80/80 (Min.)(CR≥10)(L/R/U/D)
frekuensi100Hz
ic pengemudiCOF Built-in SSD1322UR1
antarmuka sinyal8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins
aplikasiIA
Model Keluarga
OEL9M0065-W-E Other 2.7 256×64
OEL9M0068-R-E Other 0.91 128×32
OEL9M0068-Y-E Other 0.91 128×32
OEL9M0073-B-E Other 1.0 128×64
OEL9M0073-G-E Other 1.0 128×64
OEL9M0073-R-E Other 1.0 128×64
OEL9M0073-Y-E Other 1.0 128×64
OEL9M0078-B-E Other 1.45 132×16
OEL9M0083-B-E Other 0.96 128×64
OEL9M0084-Y-E Other 0.91 128×32
