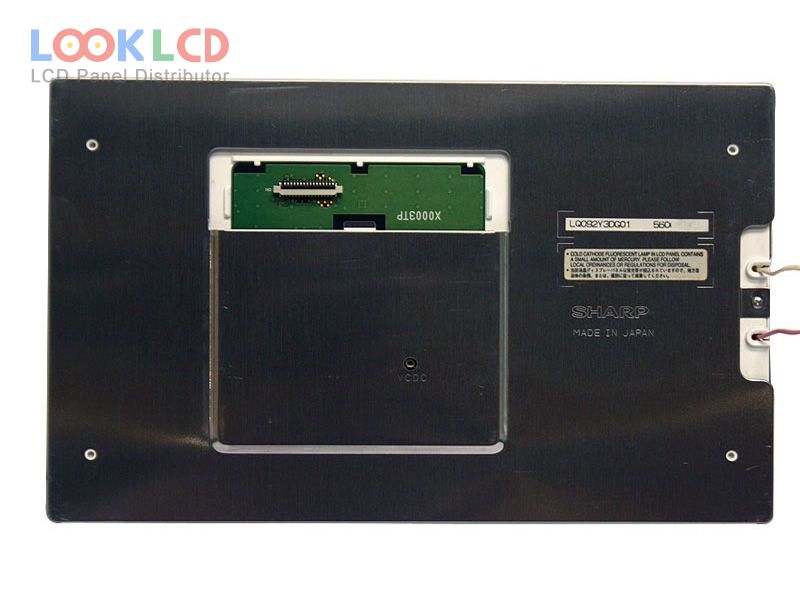

| Nomor Bagian | LQ092Y3DG01 |
| Merek | SHARP |
| Ukuran | 9.2 |
| Aplikasi | |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 380 |
| CR | 250:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antarmuka | TTL |
| merek panel | SHARP |
| model panel | LQ092Y3DG01 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 9.2 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 200.4×120.2 mm |
| garis besar | 226.6×143.9 mm |
| permukaan | |
| kecerahan | 380 cd/m² (Typ.) |
| rasio kontras | 250:1 (Typ.) |
| menampilkan warna | 262K (6-bit) |
| waktu merespon | 30/50 (Typ.)(Tr/Td) |
| sudut pandang | 65/65/55/65 (Typ.)(CR≥5)(L/R/U/D) |
| jenis lampu | 1 pcsCCFL |
| antarmuka sinyal | Parallel RGB (1 ch, 6-bit), 32 pins |
| tegangan masukan | 5.0V (Typ.)(VCC) |
