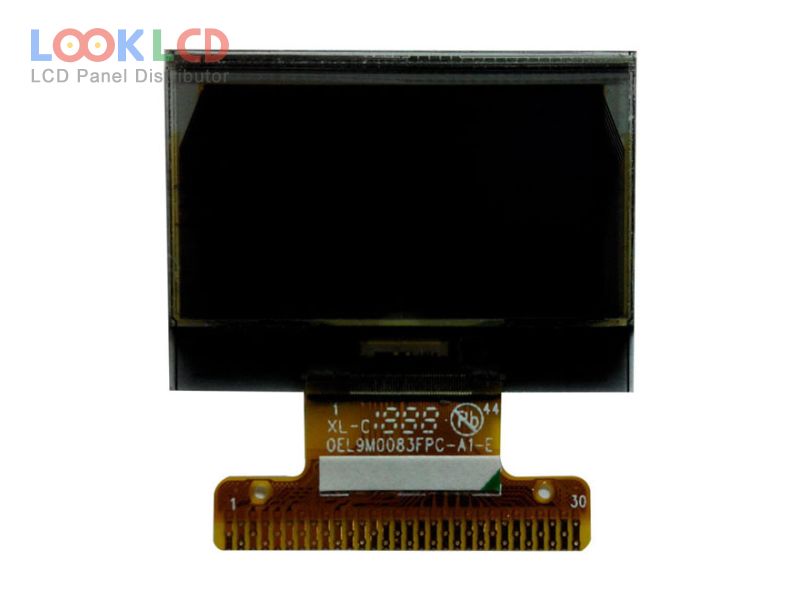

| Nomor Bagian | OEL9M0083-R-E |
| Merek | Other |
| Ukuran | 0.96 |
| Aplikasi | |
| Resolusi | 128×64 |
| Komposisi | OLED |
| Kecerahan | |
| CR | 10000:1 |
| Warna | Mono(Red) |
| Lampu latar | self |
| Antarmuka | CPU/SPI/I²C |
| merek panel | TRULY |
| model panel | OEL9M0083-R-E |
| tipe panel | PM-OLED , OLED |
| ukuran panel | 0.96 inch |
| resolusi | 128×64 |
| daerah aktif | 21.74×11.175 mm |
| garis besar | 26.7×19.26×1.65 mm |
| permukaan | |
| kecerahan | |
| rasio kontras | 10000 : 1 (Min.) |
| menampilkan warna | Mono(Red) (1-bit) |
| sudut pandang | 80/80/80/80 (Min.)(L/R/U/D) |
| frekuensi | 100Hz |
| ic pengemudi | COG Built-in SH1106G |
| antarmuka sinyal | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
