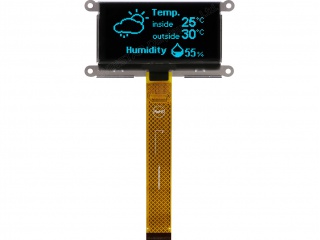

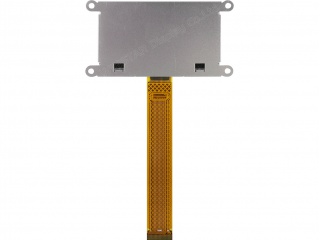

| Nomor Bagian | WEF012864QS |
| Merek | Winstar |
| Ukuran | 2.7 |
| Aplikasi | Home Appliance Handh |
| Resolusi | 128×64 |
| Komposisi | PM-OLED , OLED |
| Kecerahan | |
| CR | |
| Warna | Mono(Blue) |
| Lampu latar | self |
| Antarmuka | 8-bit |
| merek panel | Winstar |
| ukuran panel | 2.7" |
| resolusi | 128×64, 52PPI |
| area tampilan | 61.41(W)×30.69(H) mm |
| ukuran garis besar | 89.7(W)×47.2(H) mm |
| sudut pandang | - |
| tampilan terbaik di | Symmetry |
| menampilkan warna | Mono(Blue) |
| frekuensi | - |
| ic pengemudi | COG Built-in SSD1309ZC |
| berat panel | - |
| antarmuka sinyal | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 30 pins FPC |
| tegangan masukan | 3.0/13V (Typ.)(VDD/VCC) |
| lingkungan | Operating Temp.: -40 ~ 80 °C ; Storage Temp.: -40 ~ 80 °C |
| model panel | WEF012864QS |
| tipe panel | PM-OLED , OLED |
| format piksel | Rectangle |
| bukaan bezel | 63.41(W)×32.69(H) mm |
| permukaan | - |
| mode tampilan | - |
| waktu merespon | - |
| jenis lampu | self |
| layar sentuh | Without |
| aplikasi | Home Appliance Handheld & PDA Healthcare Instruments & Meters |
