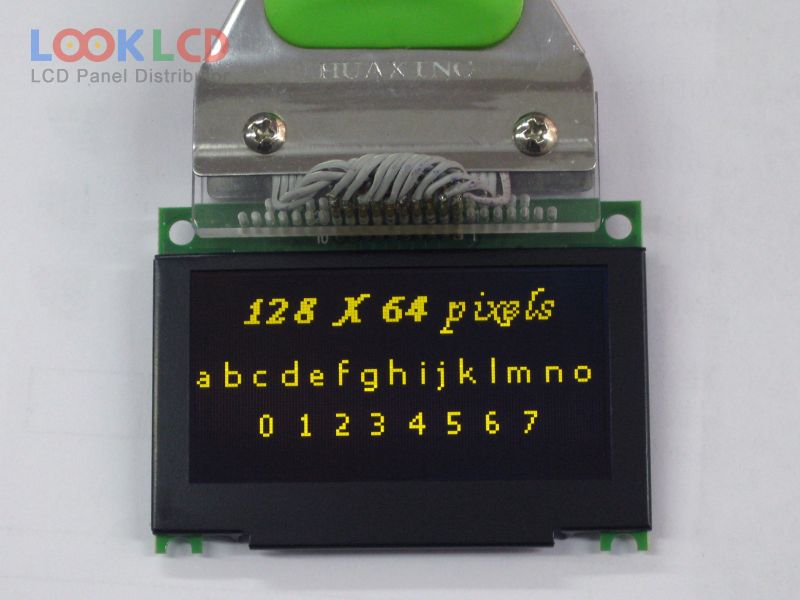

| Nomor Bagian | HGS128645-Y-EH-LV |
| Merek | Other |
| Ukuran | 2.7 |
| Aplikasi | IA |
| Resolusi | 128×64 |
| Komposisi | OLED |
| Kecerahan | 100 |
| CR | 2000:1 |
| Warna | Mono(Yellow) |
| Lampu latar | self |
| Antarmuka | CPU/SPI |
| merek panel | TSINGTEK |
| model panel | HGS128645-Y-EH-LV |
| tipe panel | PM-OLED , OLED |
| ukuran panel | 2.7 inch |
| resolusi | 128×64 |
| daerah aktif | 61.41×30.69 mm |
| garis besar | 75×53.5×7 mm |
| permukaan | |
| kecerahan | 100 cd/m² (Typ.) |
| rasio kontras | 2000 : 1 (Min.) |
| menampilkan warna | Mono(Yellow) |
| sudut pandang | 80/80/80/80 (Min.)(L/R/U/D) |
| ic pengemudi | Built-in SSD1325 |
| antarmuka sinyal | 8-bit 6800/8080 parallel, SPI, 20 pins |
| tegangan masukan | 3.3V (Typ.) |
| roh: | |
| aplikasi | IA |
