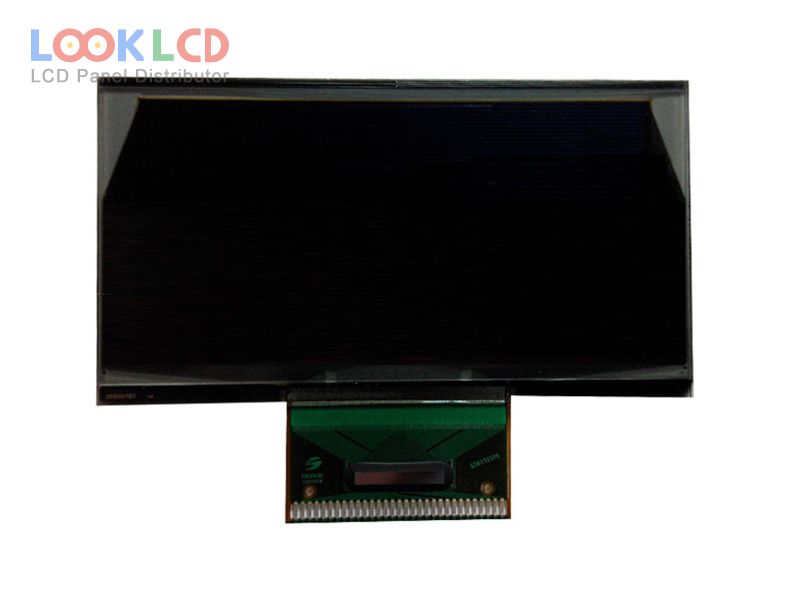

OEL9M5001-Y-E

OEL9M5001-Y-E
OEL9M5001-Y-E thumb
Merek
Other
Ukuran
2.7
Aplikasi
IA
Resolusi
128×64
Komposisi
OLED
Kecerahan
80
CR
10000:1
Warna
Grayscale(Y)
Lampu latar
self
Antarmuka
CPU/SPI
In Stock
10467
Spesifikasi

Nomor Bagian OEL9M5001-Y-E
MerekOther
Ukuran2.7
AplikasiIA
Resolusi128×64
KomposisiOLED
Kecerahan80
CR10000:1
WarnaGrayscale(Y)
Lampu latarself
AntarmukaCPU/SPI
merek panelTRULY
model panelOEL9M5001-Y-E
tipe panel PM-OLED , OLED
ukuran panel2.7 inch
resolusi128×64
daerah aktif61.41×30.69 mm
garis besar73×40.24×2.15 mm
permukaan
kecerahan80 cd/m² (Typ.)
rasio kontras10000 : 1 (Min.)
menampilkan warnaGrayscale(Y) (4-bit)
sudut pandang80/80/80/80 (Min.)(L/R/U/D)
frekuensi100Hz
ic pengemudiTAB Built-in SSD1325T6R1
antarmuka sinyal8-bit 6800/8080 parallel, SPI, 30 pins
tegangan masukan3.0/13.0V (Typ.)(VDD/VCC)
aplikasiIA
Model Keluarga
OEL9M5001-B-E Other 2.7 128×64
OEL9M5001-G-E Other 2.7 128×64
OEL9M5001-R-E Other 2.7 128×64
OEL9M5001-W-E Other 2.7 128×64
OEL9M5001-Y-E Other 2.7 128×64
OEL9M5003-B-E Other 2.7 128×64
OEL9M5003-G-E Other 2.7 128×64
OEL9M5003-R-E Other 2.7 128×64
OEL9M5003-W-E Other 2.7 128×64
OEL9M5003-Y-E Other 2.7 128×64
