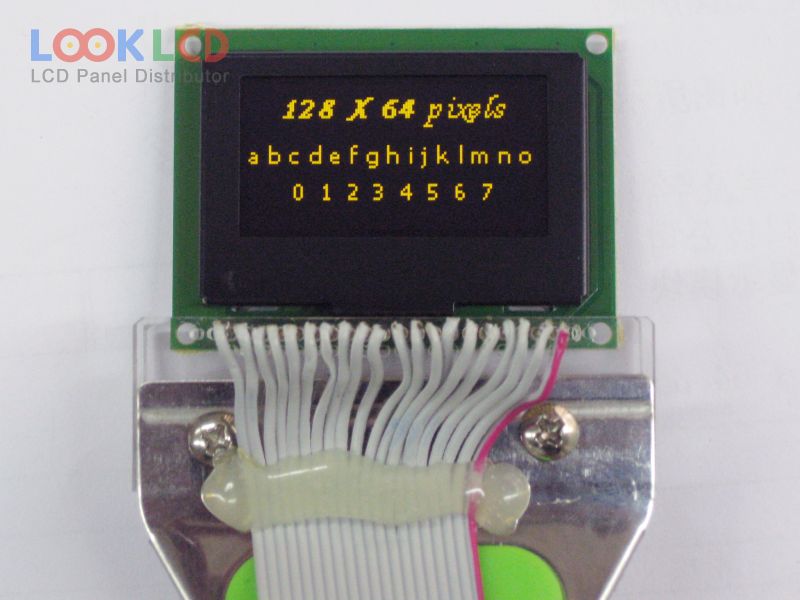

| Nomor Bagian | HGS128647-Y-EH-LV |
| Merek | Other |
| Ukuran | 1.54 |
| Aplikasi | IA |
| Resolusi | 128×64 |
| Komposisi | OLED |
| Kecerahan | 150 |
| CR | 2000:1 |
| Warna | Mono(Yellow) |
| Lampu latar | self |
| Antarmuka | CPU/SPI/I²C |
| merek panel | TSINGTEK |
| model panel | HGS128647-Y-EH-LV |
| tipe panel | PM-OLED , OLED |
| ukuran panel | 1.54 inch |
| resolusi | 128×64 |
| daerah aktif | 35.056×17.52 mm |
| garis besar | 54×39.5×8.5 mm |
| permukaan | |
| kecerahan | 150 cd/m² (Typ.) |
| rasio kontras | 2000 : 1 (Min.) |
| menampilkan warna | Mono(Yellow) |
| sudut pandang | 80/80/80/80 (Min.)(L/R/U/D) |
| ic pengemudi | Built-in SSD1305 |
| antarmuka sinyal | 8-bit 6800/8080 parallel, 4-wire SPI, I²C, 20 pins |
| tegangan masukan | 3.3V (Typ.) |
| roh: | |
| aplikasi | IA |
