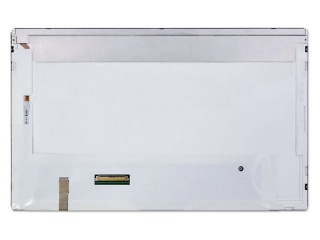

| Nomor Bagian | TM101DDHG01-60 |
| Merek | TIANMA |
| Ukuran | 10.1 |
| Aplikasi | Industrial Automotiv |
| Resolusi | 1024×600 |
| Komposisi | a-Si TFT-LCD , LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antarmuka | |
| merek panel | TIANMA |
| ukuran panel | 10.1" |
| resolusi | 1024(RGB)×600, WSVGA, 117PPI |
| area tampilan | 222.72(W)×125.28(H) mm |
| ukuran garis besar | 235(W)×143(H) ×5.4(D) mm |
| kecerahan | 450 cd/m² (Typ.) |
| sudut pandang | 80/80/75/80 (Typ.)(CR≥10) |
| tampilan terbaik di | 12 o'clock |
| menampilkan warna | 262K/16.7M 47% NTSC |
| frekuensi | 60Hz |
| berat | 202g (Typ.) |
| model panel | TM101DDHG01-60 |
| tipe panel | a-Si TFT-LCD , LCM |
| format piksel | RGB Vertical Stripe |
| bukaan bezel | 225.52(W)×128.10(H) mm |
| permukaan | Antiglare, Hard coating (3H) |
| rasio kontras | 800:1 (Typ.) (TM) |
| mode tampilan | TN, Normally White, Transmissive |
| waktu merespon | 7/9 (Typ.)(Tr/Td) |
| jenis lampu | WLED , 30K hours , With LED Driver |
| layar sentuh | Without |
| aplikasi | Industrial Automotive Display |
| A101AIE40L0 | Aptus | 10.1 | 1280×720 |
| AM-1280800N2TZQW-00H | AMPIRE | 10.1 | 1280×800 |
| CLAA101WB03 | CPT | 10.1 | 1366×768 |
| LTL101AL06-W02 | Samsung | 10.1 | 1280×800 |
| PJ101IA-01A | Innolux | 10.1 | 1280×800 |
| Q101IRE-LA1 | Innolux | 10.1 | 1280×800 |
| TM101DDHG01 | Tianma | 10.1 | 1024×600 |
| TM101DDHG03 | Tianma | 10.1 | 1024×600 |
| TV101WUM-NH0 | BOE | 10.1 | 1200×1920 |
| TV101WXM-NP0 | BOE | 10.1 | 1280×800 |
