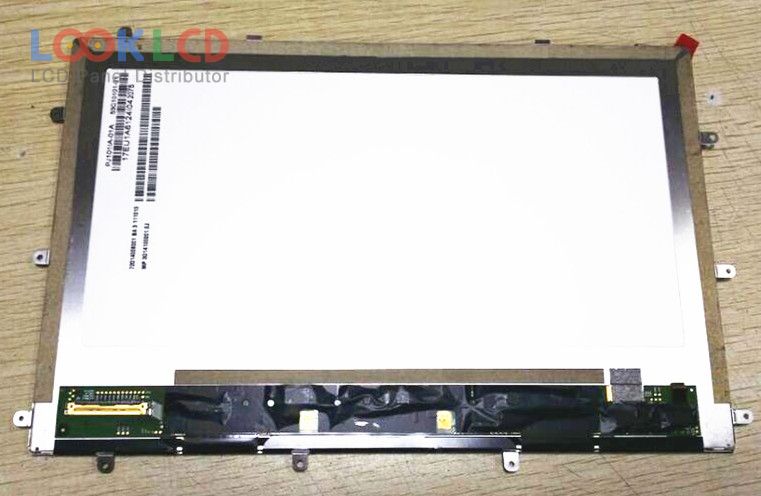

| Nomor Bagian | PJ101IA-01A |
| Merek | Innolux |
| Ukuran | 10.1 |
| Aplikasi | PAD |
| Resolusi | 1280×800 |
| Komposisi | LCM |
| Kecerahan | 450 |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | MIPI |
| merek panel | INNOLUX |
| model panel | PJ101IA-01A |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 10.1 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| mode tampilan | IPS, Normally Black, Transmissive |
| daerah aktif | 216.96×135.36 mm |
| garis besar | 227.56×148.2×4.65 mm |
| permukaan | Hard coating |
| kecerahan | 450 cd/m² (Typ.) |
| rasio kontras | 800:1 (Typ.) |
| menampilkan warna | 16.7M (8-bit), CIE193150% |
| waktu merespon | 35 (Typ.)(Tr+Td) |
| sudut pandang | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | WLED |
| antarmuka sinyal | MIPI (4 data lanes), 40 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | PAD |
