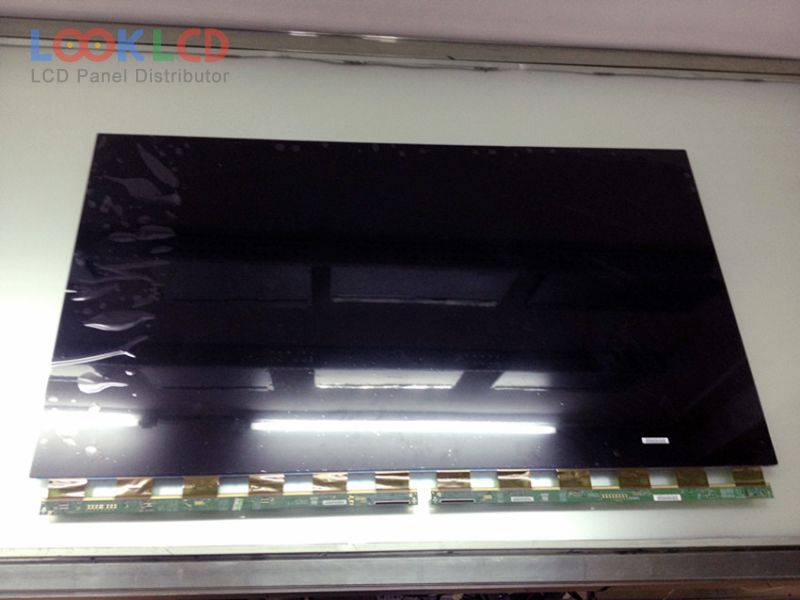

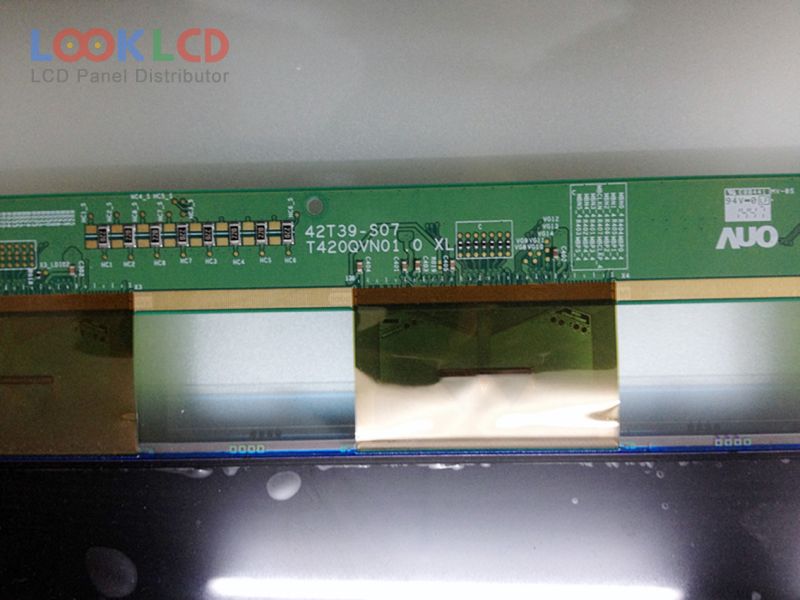

T420QVN01.0 CELL

T420QVN01.0 CELL
T420QVN01.0 CELL
T420QVN01.0 CELL thumb T420QVN01.0 CELL thumb
Merek
AUO
Ukuran
42
Aplikasi
LCTV
Resolusi
3840×2160
Komposisi
CELL
Kecerahan
0
CR
4000:1
Warna
1.07B
Lampu latar
No B/L
Antarmuka
V-by-One
In Stock
15820
Spesifikasi

Nomor Bagian T420QVN01.0 CELL
MerekAUO
Ukuran42
AplikasiLCTV
Resolusi3840×2160
KomposisiCELL
Kecerahan0
CR4000:1
Warna1.07B
Lampu latarNo B/L
AntarmukaV-by-One
merek panelAUO
model panelT420QVN01.0 CELL
tipe panel a-Si TFT-LCD , CELL
ukuran panel42 inch
resolusi3840(RGB)×2160 , UHD
mode tampilanAMVA3, Normally Black, Transmissive
daerah aktif930.24×523.26 mm
garis besar946.24×540.06 mm
permukaanAntiglare (Haze 2%), Hard coating (3H)
kedalaman kaca0.50+0.50 mm
keterusan4.55% (Typ.)(with Polarizer)
rasio kontras4000:1 (Typ.)
menampilkan warna1.07B (8-bit + Hi-FRC)
waktu merespon6.5 (Typ.)(G to G)
sudut pandang89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
frekuensi120Hz
antarmuka sinyalV-by-One 8 lane, 51 pins
tegangan masukan12.0V (Typ.)
aplikasiLCTV
Model Keluarga
LC420DUE-SFR2 LG Display 42 1920×1080
LC420DUN-SER1 LG Display 42 1920×1080
LC420DUN-SEU3 LG Display 42 1920×1080
LC420EUG-PEF2 LG Display 42 1920×1080
LC420EUS-SCA2 LG Display 42 1920×1080
LD420WUB-SCG1 LG Display 42 1920×1080
PM42H4000 COC 42 1024×768
T420HW06 V5 AUO 42 1920×1080
T420HW08 V0 CELL AUO 42 1920×1080
T420QVN01.0 CELL AUO 42 3840×2160
