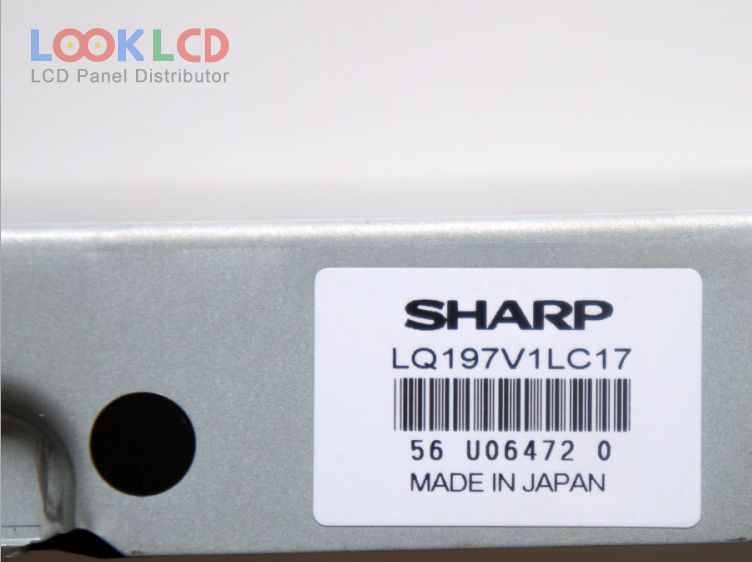

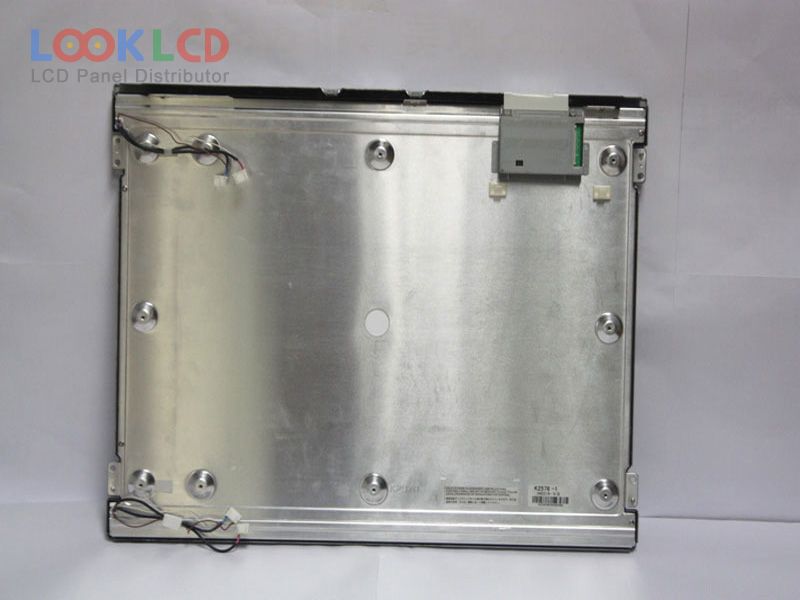

| Nomor Bagian | LQ197V1LC17 |
| Merek | SHARP |
| Ukuran | 19.7 |
| Aplikasi | LCTV |
| Resolusi | 640×480 |
| Komposisi | LCM |
| Kecerahan | 260 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antarmuka | LVDS |
| merek panel | SHARP |
| model panel | LQ197V1LC17 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 19.7 inch |
| resolusi | 640(RGB)×480 , VGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 401.28×298.8 mm |
| garis besar | 448.1×340.1 mm |
| permukaan | Hard coating (2H) |
| kecerahan | 260 cd/m² (Typ.) |
| rasio kontras | 500:1 (Typ.) |
| menampilkan warna | 262K (6-bit) |
| waktu merespon | 25 (Typ.)(Tr+Td) |
| sudut pandang | 60/60/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | 4 pcsCCFLWithout Driver |
| antarmuka sinyal | LVDS (1 ch, 6-bit), 20 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | LCTV |
