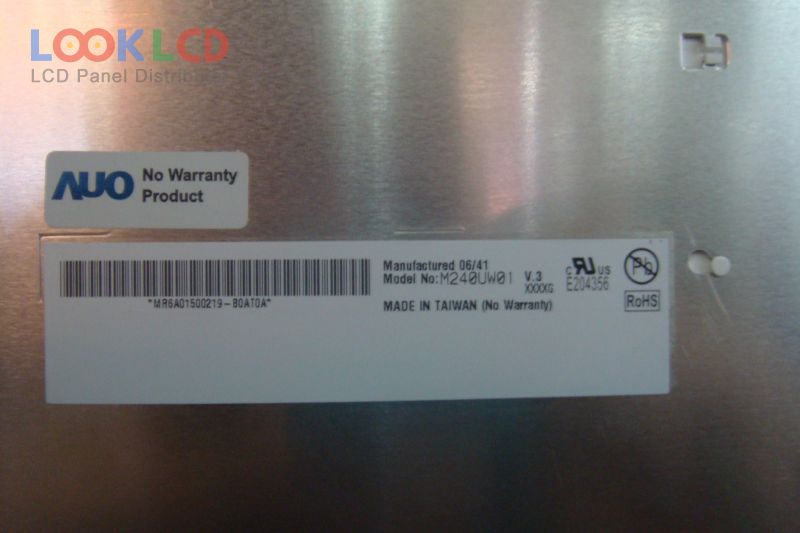

| Nomor Bagian | M240UW01 V3 |
| Merek | AUO |
| Ukuran | 24.0 |
| Aplikasi | DMPC |
| Resolusi | 1920×1200 |
| Komposisi | LCM |
| Kecerahan | 300 |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | CCFL |
| Antarmuka | LVDS |
| merek panel | AUO |
| model panel | M240UW01 V3 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 24.0 inch |
| resolusi | 1920(RGB)×1200 , WUXGA |
| mode tampilan | AMVA, Normally Black, Transmissive |
| daerah aktif | 518.4×324 mm |
| garis besar | 546.4×352×36.3 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 300 cd/m² (Typ.) |
| rasio kontras | 800:1 (Typ.) |
| menampilkan warna | 16.7M (8-bit), CIE193172% |
| waktu merespon | 10/6 (Typ.)(Tr/Td) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 6 pcsCCFLWithout Driver |
| antarmuka sinyal | LVDS (2 ch, 8-bit), 30 pins |
| tegangan masukan | 5.0V (Typ.) |
| aplikasi | DMPC |
