LG Display LM240WU8-SLD1 lembar data, spesifikasi, stok, aplikasi www.looklcd-id.com
LookLCD LookLCD

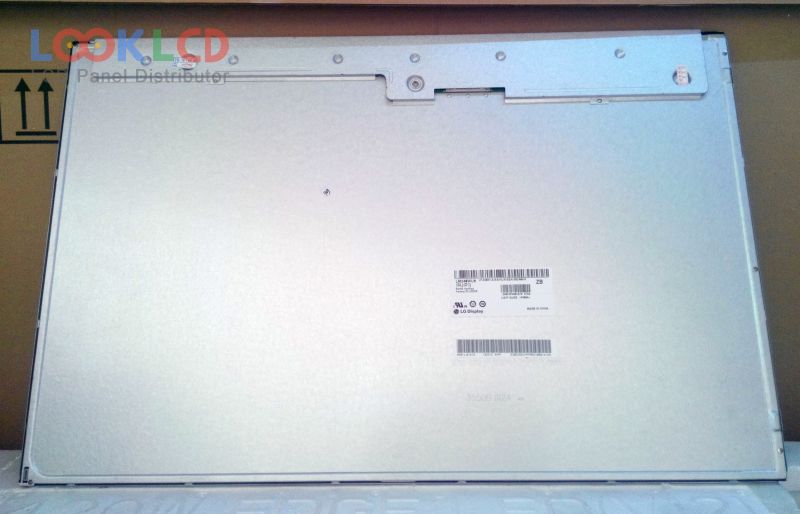

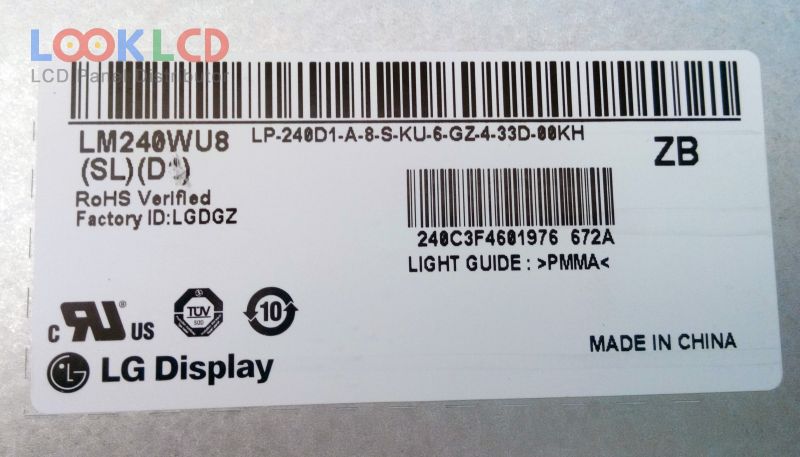

LM240WU8-SLD1

LM240WU8-SLD1
LM240WU8-SLD1
LM240WU8-SLD1 thumb LM240WU8-SLD1 thumb
Merek
LG Display
Ukuran
24.0
Aplikasi
DMPC
Resolusi
1920×1200
Komposisi
LCM
Kecerahan
300
CR
1000:1
Warna
16.7M
Lampu latar
WLED
Antarmuka
LVDS
In Stock
2003
Spesifikasi

Nomor Bagian LM240WU8-SLD1
MerekLG Display
Ukuran24.0
AplikasiDMPC
Resolusi1920×1200
KomposisiLCM
Kecerahan300
CR1000:1
Warna16.7M
Lampu latarWLED
AntarmukaLVDS
merek panelLG Display
model panelLM240WU8-SLD1
tipe panel a-Si TFT-LCD , LCM
ukuran panel24.0 inch
resolusi1920(RGB)×1200 , WUXGA
mode tampilanIPS, Normally Black, Transmissive
daerah aktif518.4×324 mm
garis besar546.4×352×12.2 mm
permukaanAntiglare, Hard coating (3H)
kecerahan300 cd/m² (Typ.)
rasio kontras1000:1 (Typ.)
menampilkan warna16.7M (6-bit + Hi-FRC), sRGB
waktu merespon14 (Typ.)(G to G)
sudut pandang89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
frekuensi60Hz
jenis lampu13S3PWLEDWithout Driver
antarmuka sinyalLVDS (2 ch, 8-bit), 30 pins
tegangan masukan12.0V (Typ.)
aplikasiDMPC
