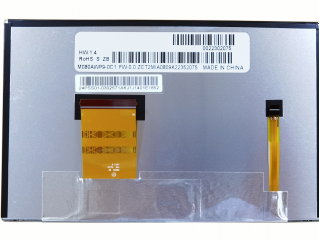

| Nomor Bagian | M080AWP9 R0 |
| Merek | IVO |
| Ukuran | 8.0 |
| Aplikasi | Automotive Display |
| Resolusi | 800×480 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 700:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | Parallel |
| merek | IVO |
| model | M080AWP9 R0 |
| ukuran diagonal | 8.0 inch |
| jenis | a-Si TFT-LCD, LCM |
| format piksel | 800(RGB)×480 [WVGA] 115PPI |
| konfigurasi | RGB Vertical Stripe |
| daerah aktif | 175.2(H)×105.12(V) mm |
| garis besar redup. | 186.5(H)×117.22(V) ×6.65(D) mm |
| daerah bezel | 177.4(H)×107.32(V) mm |
| perlakuan | Antiglare |
| pencahayaan | 750 cd/m² (Typ.) |
| rasio kontras | 700:1 (Typ.) (TM) |
| arah pandangan | - |
| waktu merespon | 13 (Typ.)(Tr+Td) |
| sudut pandang | 70/70/50/70 (Typ.)(CR≥10) |
| Modus operasi | TN, Normally White, Transmissive |
| warna pendukung | 262K 70% NTSC |
| sumber cahaya | WLED [7S3P] , 30K hours , W/O Driver |
| berat | 195/215g (Typ./Max.) |
| dirancang untuk | Automotive Display |
| kecepatan bingkai | 60Hz |
| panel sentuh | Without |
| tipe antarmuka | Parallel RGB (1 ch, 6-bit) , 60 pins FPC |
| Sumber Daya listrik | 3.3/10.6/22/-7.0V (Typ.)(VCC/VDDA/VGH/VGL) |
| lingkungan | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
