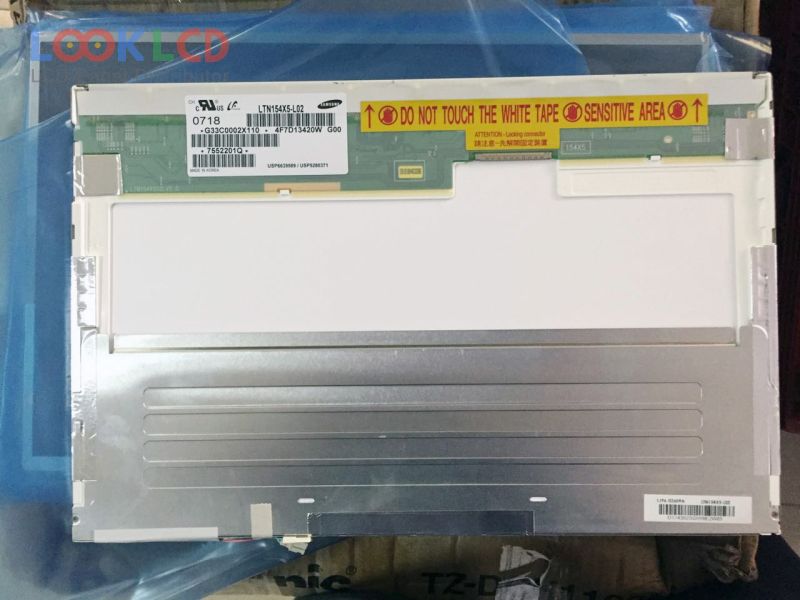

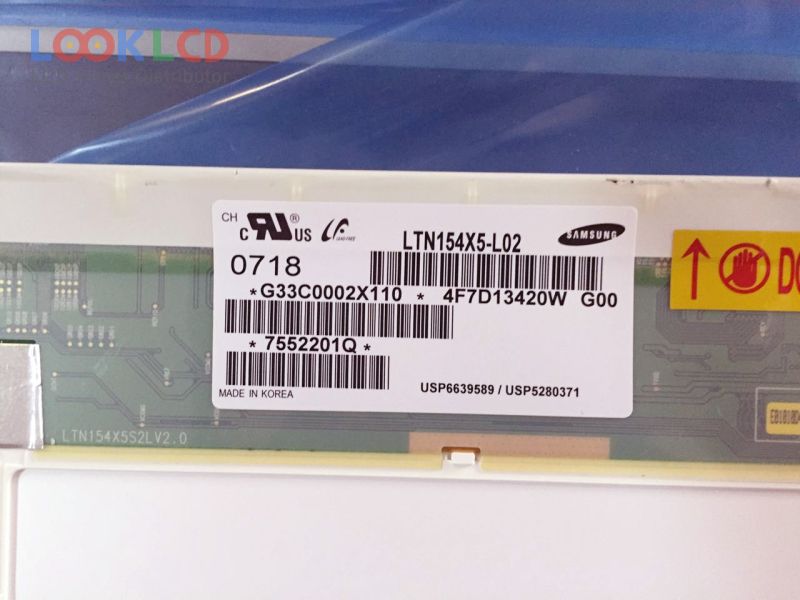

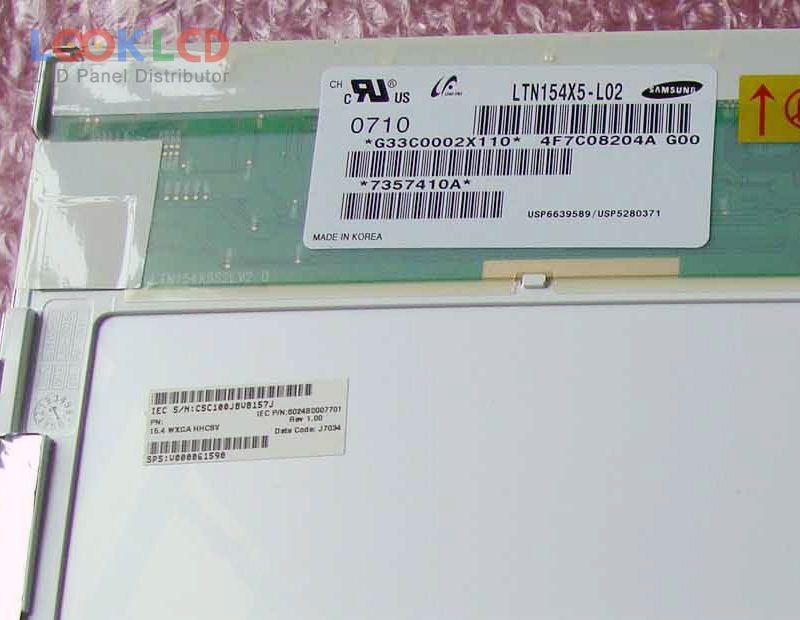

| Nomor Bagian | LTN154X5-L02 |
| Merek | Samsung |
| Ukuran | 15.4 |
| Aplikasi | NBPC |
| Resolusi | 1280×800 |
| Komposisi | LCM |
| Kecerahan | 490 |
| CR | 700:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antarmuka | LVDS |
| merek panel | SAMSUNG |
| model panel | LTN154X5-L02 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 15.4 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 331.2×207 mm |
| garis besar | 344×224×10.5 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Glare (Haze 0%), Hard coating (3H) |
| kecerahan | 490 cd/m² (Typ.) |
| rasio kontras | 700:1 (Typ.) |
| menampilkan warna | 262K (6-bit), CIE193172% |
| waktu merespon | 16 (Typ.)(Tr+Td) |
| sudut pandang | 65/65/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 2 pcsCCFLWithout Driver |
| antarmuka sinyal | LVDS (1 ch, 6-bit), 30 pins |
| tegangan masukan | 3.3V (Typ.) |
| roh: | |
| aplikasi | NBPC |
