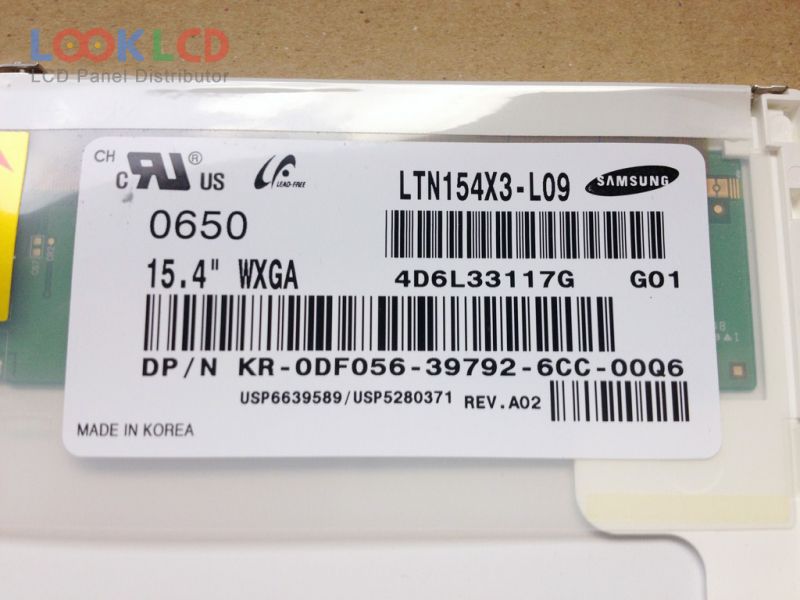

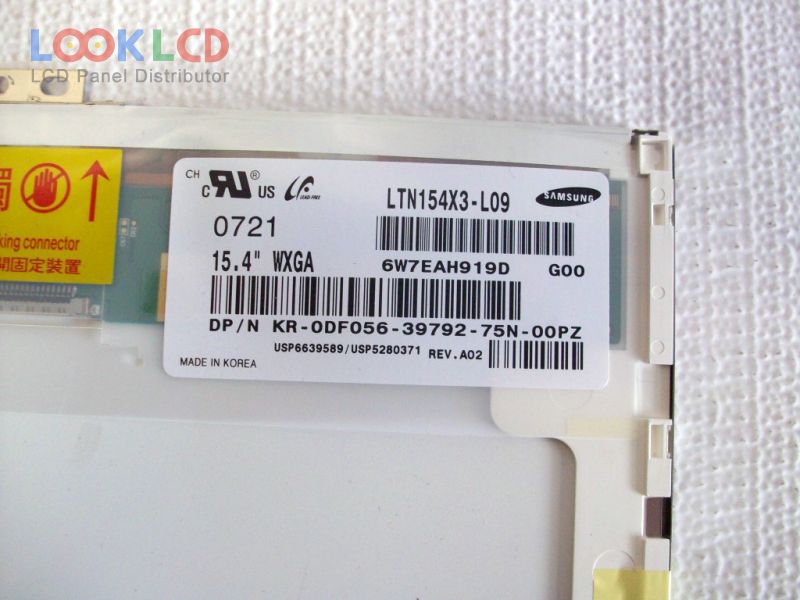

LTN154X3-L09-G

LTN154X3-L09-G
LTN154X3-L09-G
LTN154X3-L09-G thumb LTN154X3-L09-G thumb
Merek
Samsung
Ukuran
15.4
Aplikasi
NBPC
Resolusi
1280×800
Komposisi
LCM
Kecerahan
160
CR
300:1
Warna
262K
Lampu latar
CCFL
Antarmuka
LVDS
In Stock
8495
Spesifikasi

Nomor Bagian LTN154X3-L09-G
MerekSamsung
Ukuran15.4
AplikasiNBPC
Resolusi1280×800
KomposisiLCM
Kecerahan160
CR300:1
Warna262K
Lampu latarCCFL
AntarmukaLVDS
merek panelSAMSUNG
model panelLTN154X3-L09-G
tipe panel a-Si TFT-LCD , LCM
ukuran panel15.4 inch
resolusi1280(RGB)×800 , WXGA
mode tampilanTN, Normally White, Transmissive
daerah aktif331.2×207 mm
garis besar344×242.4×6.5 mm
gaya bentukWedge (PCBA Bent, Depth ≥5.2mm)
permukaanGlare (Haze 0%), Hard coating (3H)
kecerahan160 cd/m² (Typ.)
rasio kontras300:1 (Min.)
menampilkan warna262K (6-bit)
waktu merespon25 (Typ.)(Tr+Td)
sudut pandang50/50/35/50 (Typ.)(CR≥10)(L/R/U/D)
frekuensi60Hz
jenis lampu1 pcsCCFLEmbedded (Inverter)
antarmuka sinyalLVDS (1 ch, 6-bit), 30 pins
tegangan masukan3.3V (Typ.)
aplikasiNBPC
