LTN154X3-L06-J

LTN154X3-L06-J

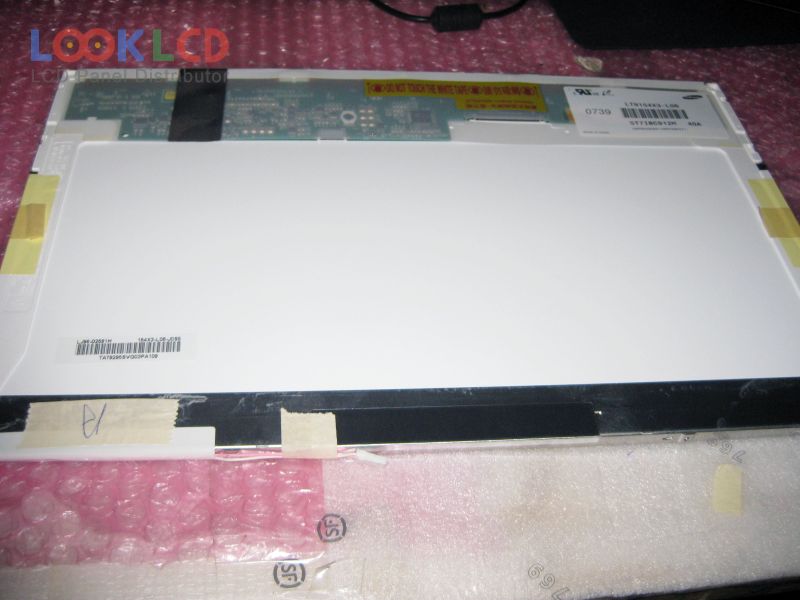

LTN154X3-L06-J thumb
Merek
Samsung
Ukuran
15.4
Aplikasi
NBPC
Resolusi
1280×800
Komposisi
LCM
Kecerahan
150
CR
400:1
Warna
262K
Lampu latar
CCFL
Antarmuka
LVDS
In Stock
5712
Spesifikasi

Nomor Bagian LTN154X3-L06-J
MerekSamsung
Ukuran15.4
AplikasiNBPC
Resolusi1280×800
KomposisiLCM
Kecerahan150
CR400:1
Warna262K
Lampu latarCCFL
AntarmukaLVDS
merek panelSAMSUNG
model panelLTN154X3-L06-J 20 Compatible model
tipe panel a-Si TFT-LCD , LCM
ukuran panel15.4 inch
resolusi1280(RGB)×800 , WXGA
mode tampilanTN, Normally White, Transmissive
daerah aktif331.2×207 mm
garis besar344×222×6.5 mm
gaya bentukWedge (PCBA Bent, Depth ≥5.2mm)
permukaanGlare (Haze 0%), Hard coating (3H)
kecerahan150 cd/m² (Typ.)
rasio kontras400:1 (Typ.)
menampilkan warna262K (6-bit)
waktu merespon25 (Typ.)(Tr+Td)
sudut pandang40/40/15/30 (Typ.)(CR≥10)(L/R/U/D)
frekuensi60Hz
jenis lampu1 pcsCCFLWithout Driver
antarmuka sinyalLVDS (1 ch, 6-bit), 30 pins
tegangan masukan3.3V (Typ.)
aplikasiNBPC
