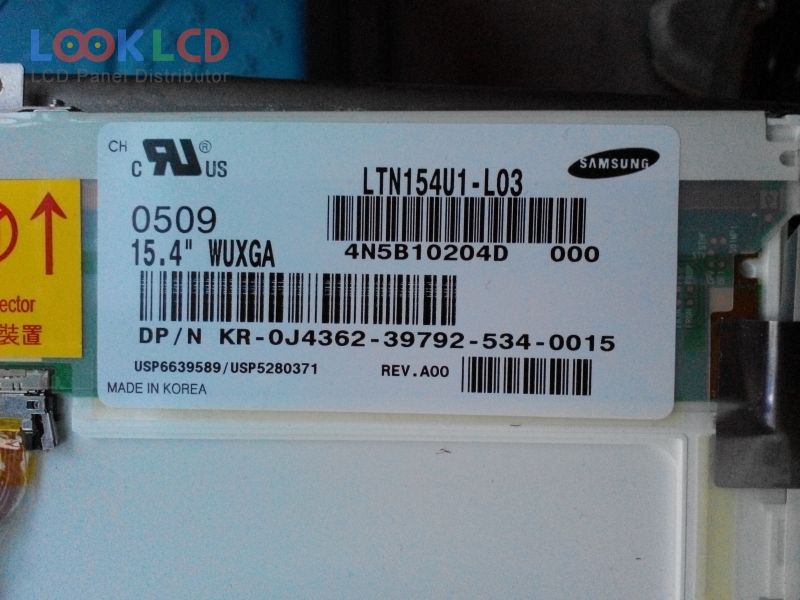

| Nomor Bagian | LTN154U1-L03 |
| Merek | Samsung |
| Ukuran | 15.4 |
| Aplikasi | NBPC |
| Resolusi | 1920×1200 |
| Komposisi | LCM |
| Kecerahan | 175 |
| CR | 300:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antarmuka | LVDS |
| merek panel | SAMSUNG |
| model panel | LTN154U1-L03 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 15.4 inch |
| resolusi | 1920(RGB)×1200 , WUXGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 331.2×207 mm |
| garis besar | 344×222×6.5 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Antiglare (Haze 25%), Hard coating (3H) |
| kecerahan | 175 cd/m² (Typ.) |
| rasio kontras | 300:1 (Min.) |
| menampilkan warna | 262K (6-bit) |
| waktu merespon | 25 (Typ.)(Tr+Tf) |
| sudut pandang | 65/65/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | CCFLEmbedded (Inverter) |
| antarmuka sinyal | LVDS (2 ch, 6-bit), 30 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | NBPC |
