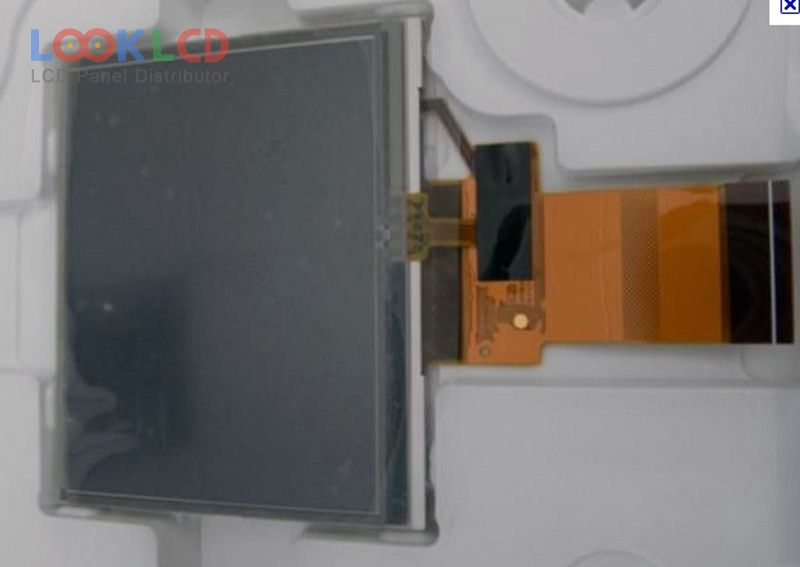

| Nomor Bagian | LQ035Q1DG02 |
| Merek | SHARP |
| Ukuran | 3.5 |
| Aplikasi | PND |
| Resolusi | 320×240 |
| Komposisi | LCM |
| Kecerahan | 320 |
| CR | 300:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | TTL |
| merek panel | SHARP |
| model panel | LQ035Q1DG02 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 3.5 inch |
| resolusi | 320(RGB)×240 , QVGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 70.56×52.92 mm |
| garis besar | 76.9×63.9×4.45 mm |
| permukaan | Antiglare, Hard coating (2H) |
| kecerahan | 320 cd/m² (Typ.) |
| rasio kontras | 300:1 (Typ.) |
| menampilkan warna | 262K (6-bit), CIE193150% |
| waktu merespon | 30/30 (Typ.)(Tr/Td) |
| sudut pandang | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 6S1PWLEDWithout Driver |
| antarmuka sinyal | Parallel RGB (1 ch, 8-bit) + SPI, 71 pins |
| tegangan masukan | 3.3/3.3V (Typ.)(VCI/VDDIO) |
| roh: | |
| aplikasi | PND |
