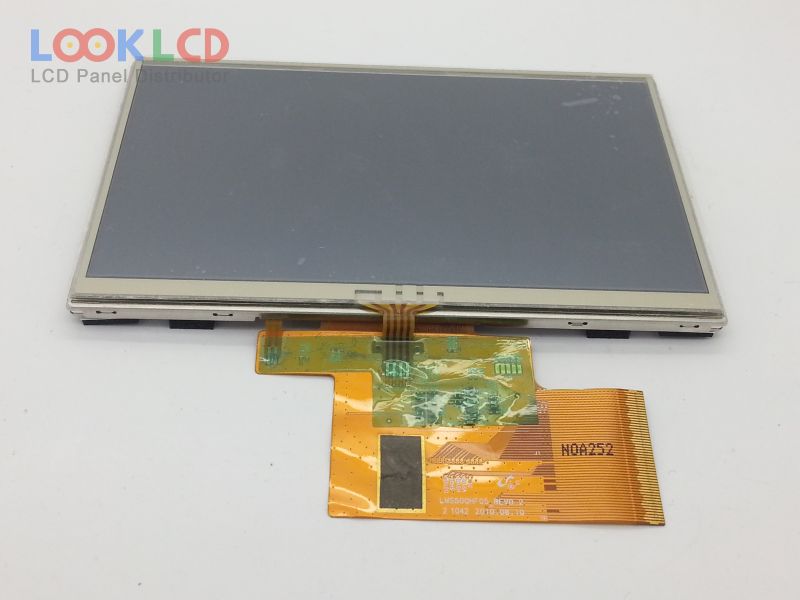

| Nomor Bagian | LMS500HF01 |
| Merek | Samsung |
| Ukuran | 5.0 |
| Aplikasi | PND |
| Resolusi | 480×272 |
| Komposisi | LCM |
| Kecerahan | 400 |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | TTL |
| merek panel | SAMSUNG SMD |
| model panel | LMS500HF01 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 5.0 inch |
| resolusi | 480×272(RGB) , WQVGA |
| mode tampilan | VA, Normally Black, TMR |
| daerah aktif | 110.88×62.832 mm |
| garis besar | 120.7×75.8×4.45 mm |
| permukaan | |
| kecerahan | 400 cd/m² (Typ.) |
| rasio kontras | 800 : 1 (Typ.) |
| menampilkan warna | 16.7M (8-bit) |
| waktu merespon | 17/15 (Typ.)(Tr/Td) |
| sudut pandang | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 7S2PWLEDWithout Driver |
| antarmuka sinyal | Parallel RGB (1 ch, 8-bit), 50 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | PND |
