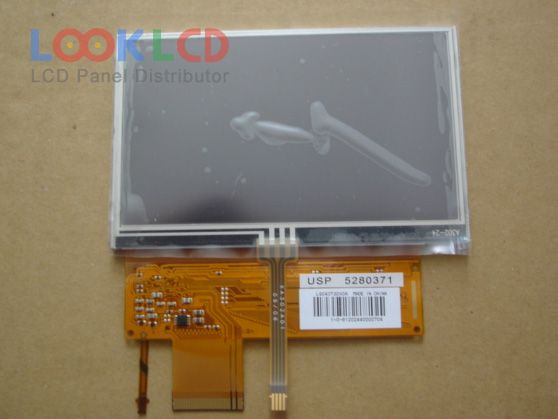

| Nomor Bagian | LQ043T3DX0A |
| Merek | SHARP |
| Ukuran | 4.3 |
| Aplikasi | PND |
| Resolusi | 480×272 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 400:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | TTL |
| merek panel | SHARP |
| model panel | LQ043T3DX0A |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 4.3 inch |
| resolusi | 480(RGB)×272 , WQVGA |
| mode tampilan | ASV, Normally Black, Transmissive |
| daerah aktif | 95.04×53.856 mm |
| garis besar | 105.5×67.2 mm |
| permukaan | Hard coating (3H) |
| kecerahan | 250 cd/m² (Typ.) |
| rasio kontras | 400:1 (Typ.) |
| menampilkan warna | 16.7M (8-bit) |
| waktu merespon | 30/30 (Typ.)(Tr/Td) |
| sudut pandang | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 7S1PWLEDWithout Driver |
| antarmuka sinyal | Parallel RGB (1 ch, 8-bit), 40 pins |
| tegangan masukan | 2.5/5.0V (Typ.)(VCC/AVDD) |
| aplikasi | PND |
