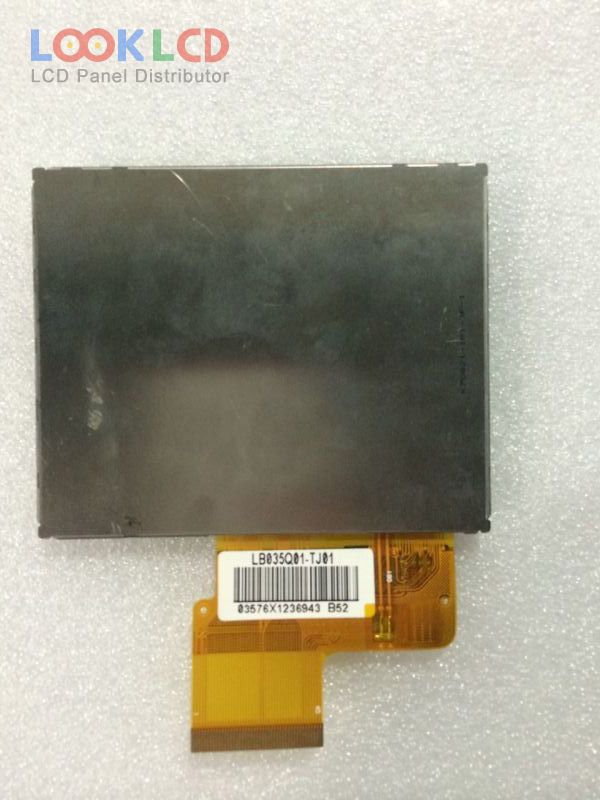

| Nomor Bagian | LB035Q01-TJ01 |
| Merek | LG Display |
| Ukuran | 3.5 |
| Aplikasi | PND |
| Resolusi | 320×240 |
| Komposisi | CELL |
| Kecerahan | 0 |
| CR | 300:1 |
| Warna | 16.7M |
| Lampu latar | No B/L |
| Antarmuka | TTL |
| merek panel | LG.Philips LCD |
| model panel | LB035Q01-TJ01 |
| tipe panel | a-Si TFT-LCD , CELL |
| ukuran panel | 3.5 inch |
| resolusi | 320(RGB)×240 , QVGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 70.08×52.56 mm |
| garis besar | 78.1×62.95×1.53 mm |
| permukaan | Hard coating |
| rasio kontras | 300:1 (Typ.) |
| menampilkan warna | 16.7M (8-bit) |
| waktu merespon | 30 (Typ.)(Tr+Td) |
| sudut pandang | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 70Hz |
| antarmuka sinyal | TTL (1 ch, 8-bit), 45 pins |
| tegangan masukan | 3.3/5.0V (Typ.)(VDD/AVDD) |
| roh: | |
| aplikasi | PND |
