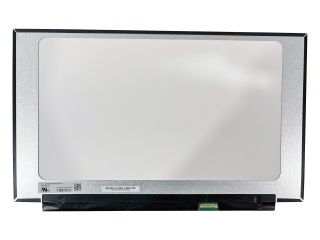

| Nomor Bagian | LM156LFAL02 |
| Merek | PANDA |
| Ukuran | 15.6 |
| Aplikasi | Laptop |
| Resolusi | 1920×1080 |
| Komposisi | LCM , Oxide TFT-LC |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | eDP |
| pabrikan | PANDA |
| ukuran layar | 15.6 inch |
| nomor piksel | 1920(RGB)×1080 (FHD) 141PPI |
| area aktif (mm) | 344.16 × 193.59 (H×V) |
| pencahayaan | 250 cd/m² (Typ.) |
| sudut pandang | 89/89/89/89 (Typ.)(CR≥10) |
| pemandangan bagus di | Symmetry |
| kedalaman warna | 262K |
| bentuk garis besar | - |
| tingkat penyegaran | 60Hz |
| jenis sinyal | eDP (2 Lanes) , eDP1.2 Connector |
| sumber tegangan | 3.3V (Typ.) |
| maks. peringkat | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| nama model | LM156LFAL02 |
| tipe layar | LCM , Oxide TFT-LCD |
| pengaturan | RGB Vertical Stripe |
| garis besar (mm) | - |
| rasio kontras | 1000 : 1 (Typ.) (TM) |
| tanggapan | 25 (Typ.)(Tr+Tf) ms |
| mode kerja | FFS, Normally Black, Transmissive |
| lampu latar | WLED |
| digunakan untuk | Laptop |
| layar sentuh | Without |
| B156XTN03.2 | AUO | 15.6 | 1366×768 |
| B156XW01 V2 | AUO | 15.6 | 1366×768 |
| BT156GW01 V.3 | Innolux | 15.6 | 1366×768 |
| LM156WH1-TLE1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLA1 | LG Display | 15.6 | 1366×768 |
| LTN156AT01-D02 | Samsung | 15.6 | 1366×768 |
| LTN156AT01-U01 | Samsung | 15.6 | 1366×768 |
| LTN156KT01-001 | Samsung | 15.6 | 1600×900 |
| N156BGE-EB1 | Innolux | 15.6 | 1366×768 |
| NV156FHM-N41 | BOE | 15.6 | 1920×1080 |
