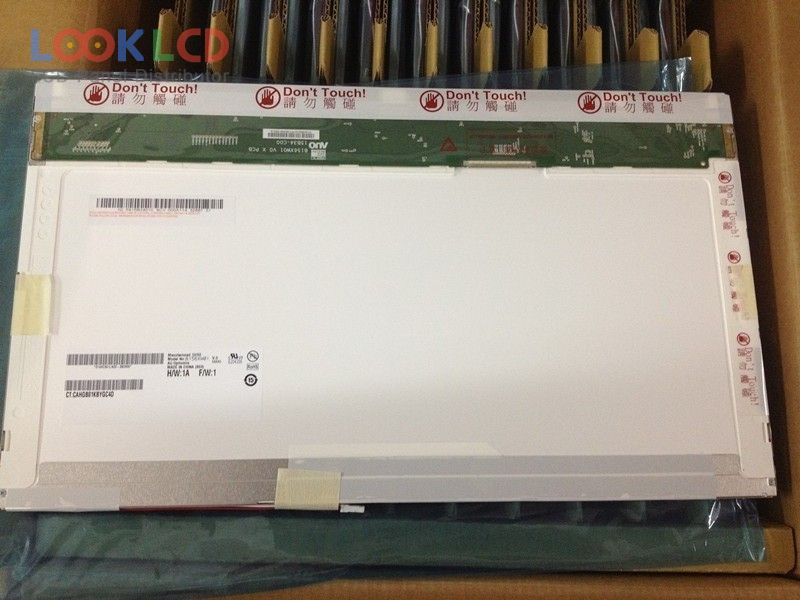

| Nomor Bagian | B156XW01 V2 |
| Merek | AUO |
| Ukuran | 15.6 |
| Aplikasi | NBPC |
| Resolusi | 1366×768 |
| Komposisi | LCM |
| Kecerahan | 220 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antarmuka | LVDS |
| merek panel | AUO |
| model panel | B156XW01 V2 11 Compatible model |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 15.6 inch |
| resolusi | 1366(RGB)×768 , WXGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 344.232×193.536 mm |
| garis besar | 359.3×209.5×6.2 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Glare (Haze 0%), Hard coating (3H) |
| kecerahan | 220 cd/m² (Typ.) |
| rasio kontras | 500:1 (Typ.) |
| menampilkan warna | 262K (6-bit), CIE193160% |
| waktu merespon | 8 (Typ.)(Tr+Td) |
| sudut pandang | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antarmuka sinyal | LVDS (1 ch, 6-bit), 30 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | NBPC |
| B156XTN02.4 | AUO | 15.6 | 1366×768 |
| B156XTN03.2 | AUO | 15.6 | 1366×768 |
| B156XTN04.1 | AUO | 15.6 | 1366×768 |
| B156XW02 V0 | AUO | 15.6 | 1366×768 |
| B156XW02 V2 HW4A | AUO | 15.6 | 1366×768 |
| B156XW03 V1 | AUO | 15.6 | 1366×768 |
| B156XW03 V2 | AUO | 15.6 | 1366×768 |
| B156XW04 V0 | AUO | 15.6 | 1366×768 |
| B156XW04 V5 | AUO | 15.6 | 1366×768 |
| B156XW04 V7 | AUO | 15.6 | 1366×768 |
| B140HAN01.0 | AUO | 14.0 | 1920×1080 |
| B156XTN02.0 | AUO | 15.6 | 1366×768 |
| CLAA133UA01 | CPT | 13.3 | 1600×900 |
| LP140WD2-TPB1 | LG Display | 14.0 | 1600×900 |
| LP156WD1-TLB4 | LG Display | 15.6 | 1600×900 |
| LTN121AT10-301 | Samsung | 12.1 | 1280×800 |
| LTN140AT21-T01 | Samsung | 14.0 | 1366×768 |
| LTN150PG-L04 | Samsung | 15.0 | 1400×1050 |
| LTN156HL01 | Samsung | 15.6 | 1920×1080 |
| LTN173KT01-W04 | Samsung | 17.3 | 1600×900 |
