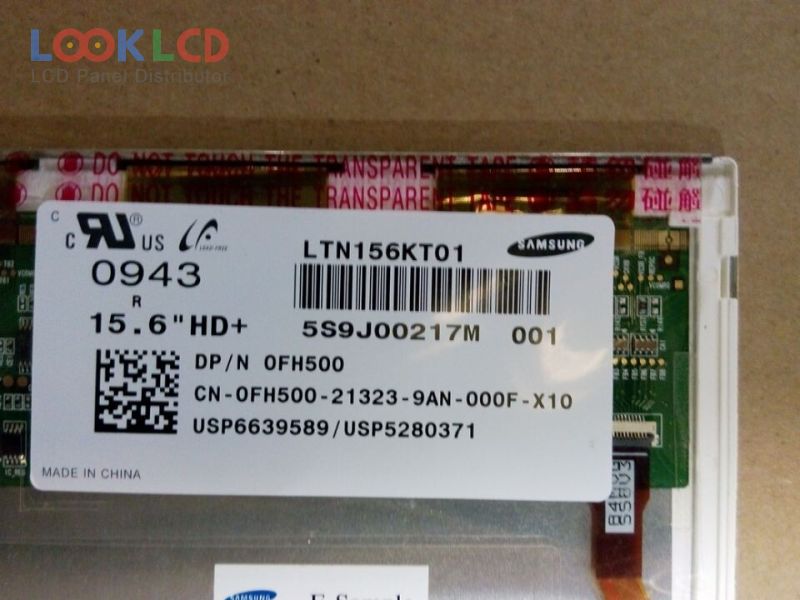

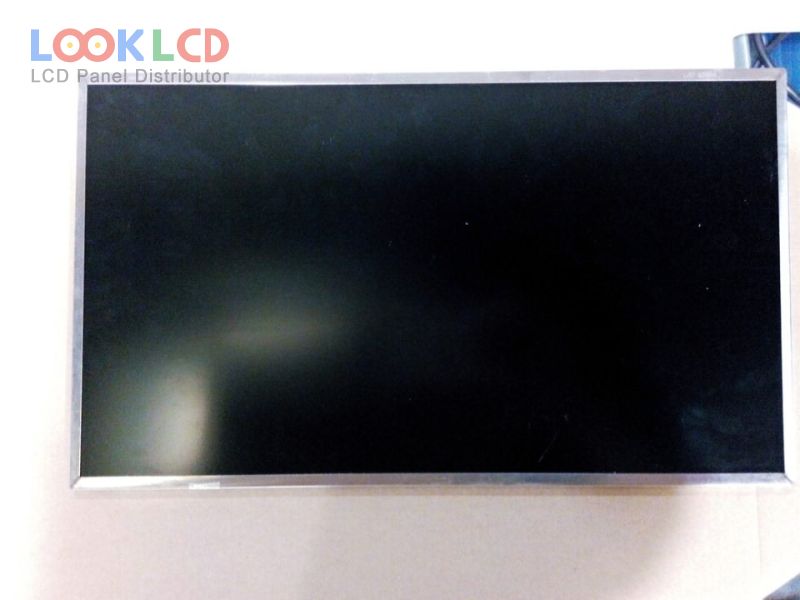

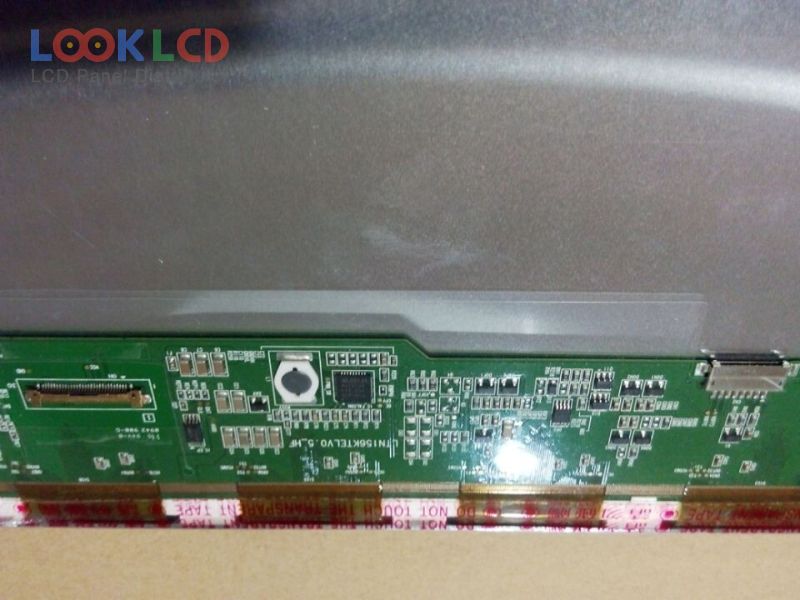

| Nomor Bagian | LTN156KT01-001 |
| Merek | Samsung |
| Ukuran | 15.6 |
| Aplikasi | NBPC |
| Resolusi | 1600×900 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 400:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | eDP |
| merek panel | SAMSUNG |
| model panel | LTN156KT01-001 2 Compatible model |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 15.6 inch |
| resolusi | 1600(RGB)×900 , HD+ |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 344.232×193.536 mm |
| garis besar | 359.3×209.5×5.8 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Antiglare (Haze 25%), Hard coating (3H) |
| kecerahan | 250 cd/m² (Typ.) |
| rasio kontras | 400:1 (Min.) |
| menampilkan warna | 262K (6-bit), CIE193160% |
| waktu merespon | 16 (Typ.)(Tr+Td) |
| sudut pandang | 55/55/45/45 (Min.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | 8S8PWLEDEmbedded (LED Driver) |
| antarmuka sinyal | eDP (1 Lane), 30 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | NBPC |
