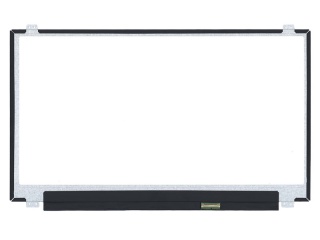

| Nomor Bagian | LM156LF1L09 |
| Merek | PANDA |
| Ukuran | 15.6 |
| Aplikasi | Laptop |
| Resolusi | 1920×1080 |
| Komposisi | Oxide TFT-LCD, LCM |
| Kecerahan | |
| CR | 1000:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | eDP |
| merek | PANDA |
| model | LM156LF1L09 (SHP14A4) |
| ukuran diagonal | 15.6 inch |
| jenis | Oxide TFT-LCD, LCM |
| format piksel | 1920(RGB)×1080 [FHD] 141PPI |
| konfigurasi | RGB Vertical Stripe |
| daerah aktif | 344.16(H)×193.59(V) mm |
| garis besar redup. | 359.5(H)×223.8(V) ×3.2(D) mm |
| daerah bezel | - |
| perlakuan | Antiglare, Hard coating (3H) |
| pencahayaan | 250 cd/m² (Typ.) |
| rasio kontras | 1000:1 (Typ.) (TM) |
| arah pandangan | Symmetry |
| waktu merespon | 25 (Typ.)(Tr+Tf) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| Modus operasi | FFS, Normally Black, Transmissive |
| warna pendukung | 262K 45% NTSC |
| sumber cahaya | WLED , 15K hours , With LED Driver |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| dirancang untuk | Laptop |
| kecepatan bingkai | 60Hz |
| panel sentuh | Without |
| tipe antarmuka | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Sumber Daya listrik | 3.3V (Typ.) |
| lingkungan | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
