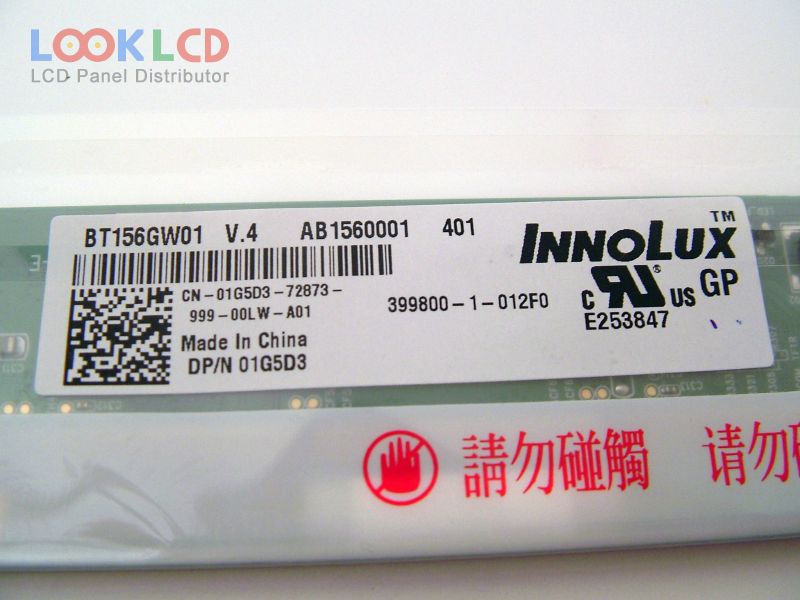

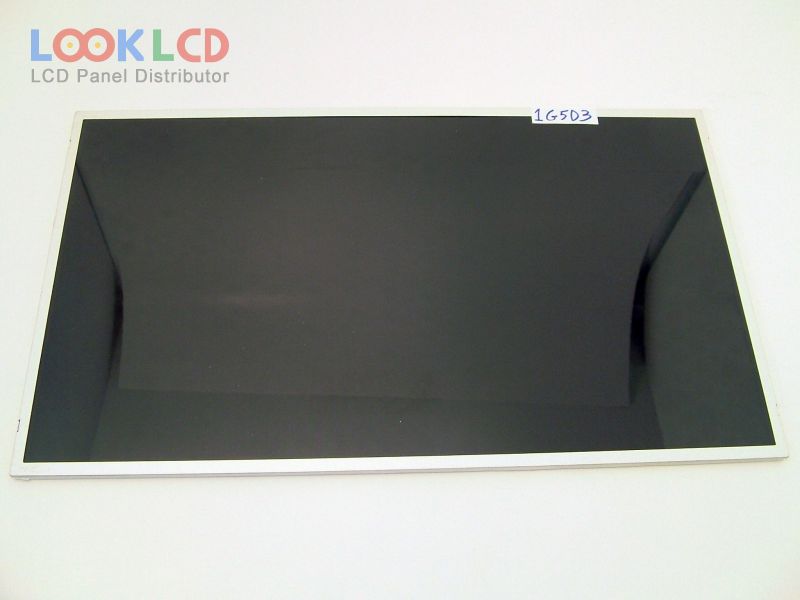

| Nomor Bagian | BT156GW01 V.4 |
| Merek | Innolux |
| Ukuran | 15.6 |
| Aplikasi | NBPC |
| Resolusi | 1366×768 |
| Komposisi | LCM |
| Kecerahan | 220 |
| CR | 600:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | INNOLUX |
| model panel | BT156GW01 V.4 16 Compatible model |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 15.6 inch |
| resolusi | 1366(RGB)×768 , WXGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 344.232×193.536 mm |
| garis besar | 359.3×209.5×5.5 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Glare (Haze 0%), Hard coating (3H) |
| kecerahan | 220 cd/m² (Typ.) |
| rasio kontras | 600:1 (Typ.) |
| menampilkan warna | 262K (6-bit), CIE193160% |
| waktu merespon | 8 (Typ.)(Tr+Td) |
| sudut pandang | 40/40/15/30 (Min.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antarmuka sinyal | LVDS (1 ch, 6-bit), 40 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | NBPC |
| BT156GW01 V.3 | Innolux | 15.6 | 1366×768 |
| BT156GW01 V.4 | Innolux | 15.6 | 1366×768 |
| BT156GW02 V.0 | Innolux | 15.6 | 1366×768 |
| LP156WF4-SPC1 | LG Display | 15.6 | 1920×1080 |
| LQ156D1JX01 | SHARP | 15.6 | 3840×2160 |
| LTN156AT02-A04 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-B01 | Samsung | 15.6 | 1366×768 |
| M156B1-L02 | Innolux | 15.6 | 1366×768 |
| M156NWR1 R0 | IVO | 15.6 | 1366×768 |
| N156B6-L06 | Innolux | 15.6 | 1366×768 |
| B133XTN01.5 | AUO | 13.3 | 1366×768 |
| LP133WH2-SPA1 | LG Display | 13.3 | 1366×768 |
| LP154WU1-TLB1 | LG Display | 15.4 | 1920×1200 |
| LP156WH2-TLR1 | LG Display | 15.6 | 1366×768 |
| LQ106K1LA01C | SHARP | 10.6 | 1280×768 |
| LTD121KX4K | TOSHIBA | 12.1 | 1280×800 |
| LTN141AT08-304 | Samsung | 14.1 | 1280×800 |
| LTN141AT09-201 | Samsung | 14.1 | 1280×800 |
| LTN156AT32-L01 | Samsung | 15.6 | 1366×768 |
| N141C1-L01 | Innolux | 14.1 | 1440×900 |
