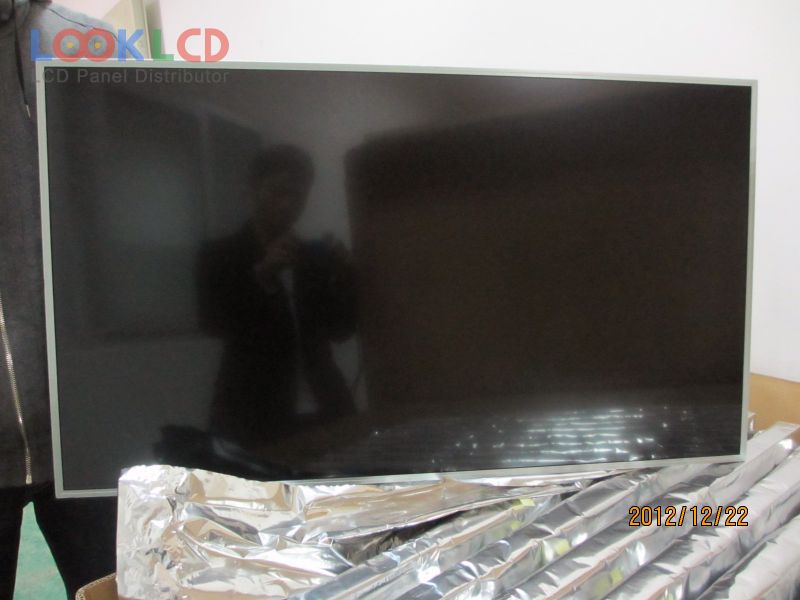

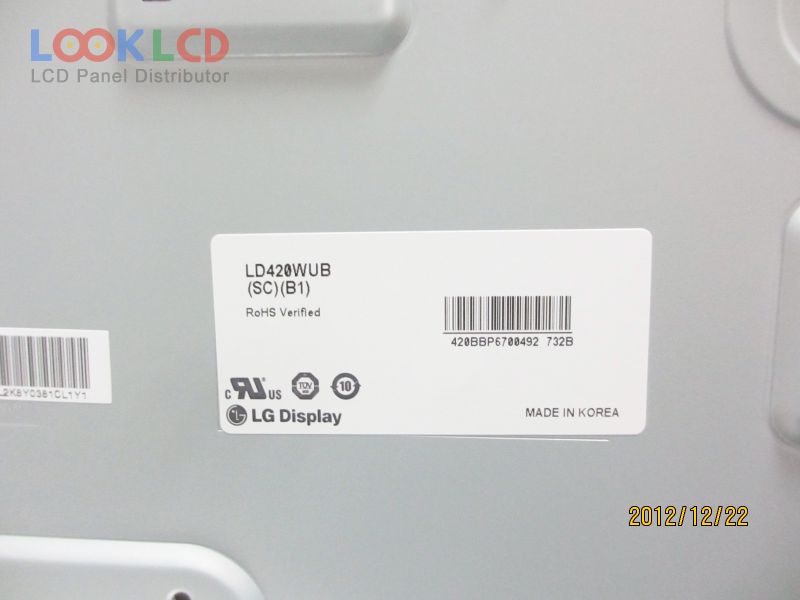

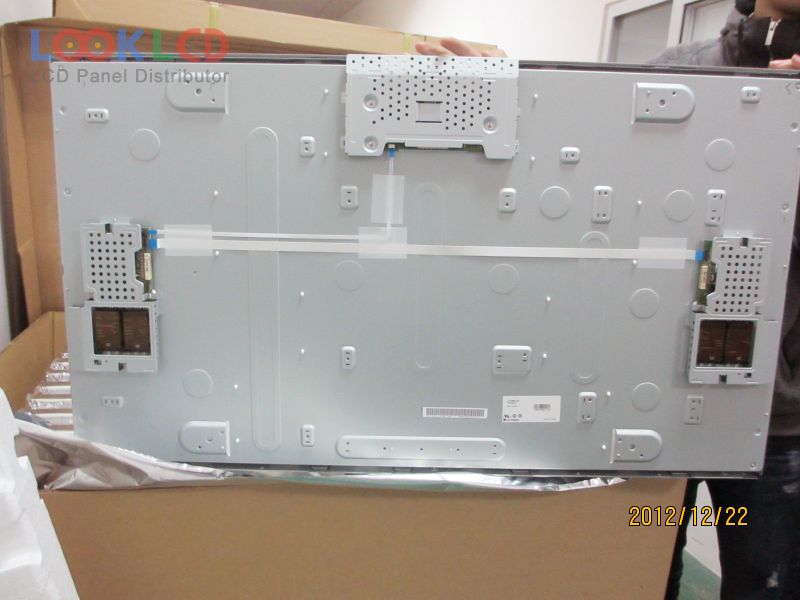

| Nomor Bagian | LD420WUB-SCB1 |
| Merek | LG Display |
| Ukuran | 42 |
| Aplikasi | PID |
| Resolusi | 1920×1080 |
| Komposisi | LCM |
| Kecerahan | 500 |
| CR | 1200:1 |
| Warna | 16.7M/1.06B |
| Lampu latar | CCFL |
| Antarmuka | LVDS |
| merek panel | LG Display |
| model panel | LD420WUB-SCB1 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 42 inch |
| resolusi | 1920(RGB)×1080 , FHD |
| mode tampilan | S-IPS, Normally Black, Transmissive |
| daerah aktif | 930.24×523.26 mm |
| garis besar | 956.4×549.4×54.5 mm, Videowall Seam 26.2 mm |
| permukaan | Antiglare (Haze 10%), Hard coating (3H) |
| kecerahan | 500 cd/m² (Typ.) |
| rasio kontras | 1200:1 (Typ.) |
| menampilkan warna | 16.7M/1.06B (8-bit / 8-bit + Dithering) |
| waktu merespon | 9 (Typ.)(G to G) |
| sudut pandang | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | CCFLEmbedded (Inverter) |
| antarmuka sinyal | LVDS (2 ch, 8/10-bit), 51 pins |
| tegangan masukan | 12.0V (Typ.) |
| aplikasi | PID |
| LC420EUF-SCA1 | LG Display | 42 | 1920×1080 |
| LD420EUP-SEA1 | LG Display | 42 | 1920×1080 |
| LD420WUB-SBA1 | LG Display | 42 | 1920×1080 |
| LD420WUB-SBG1 | LG Display | 42 | 1920×1080 |
| LD420WUB-SCA1 | LG Display | 42 | 1920×1080 |
| LD420WUB-SCB1 | LG Display | 42 | 1920×1080 |
| LD420WUB-SCC1 | LG Display | 42 | 1920×1080 |
| LD420WUB-SCG1 | LG Display | 42 | 1920×1080 |
| LD420WUN-SCA1 | LG Display | 42 | 1920×1080 |
| LD420WXN-SAA1 | LG Display | 42 | 1366×768 |
| LD320EUN-SEM1 | LG Display | 31.5 | 1920×1080 |
| LD840EQD-SEM1 | LG Display | 84 | 3840×2160 |
| LTI290LN01 | Samsung | 29.0 | 1920×540 |
| LTI430LA02 | Samsung | 43 | 1920×480 |
| LTI460AA01-001 | Samsung | 46 | 1366×768 |
| LTI550HJ05 | Samsung | 55 | 1920×1080 |
| LTI550HN04 | Samsung | 55 | 1920×1080 |
| LTI550HN07 | Samsung | 55 | 1920×1080 |
| P320HVN02.1 | AUO | 31.5 | 1920×1080 |
| P420HVN01.0 | AUO | 42 | 1920×1080 |
