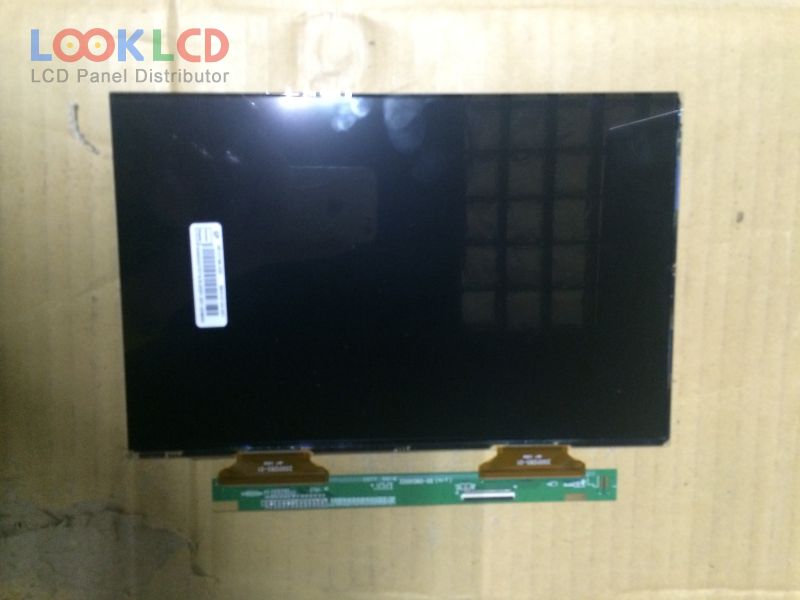

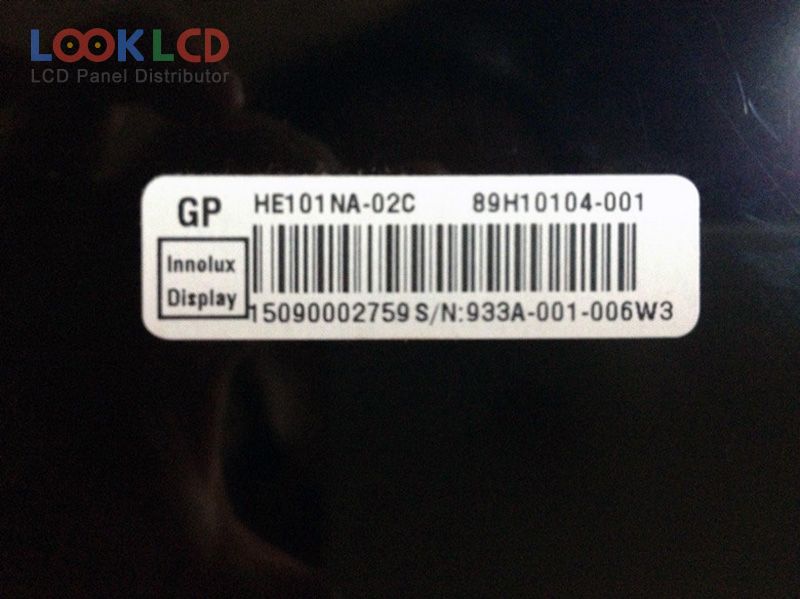

| Nomor Bagian | HE101NA-02C |
| Merek | Innolux |
| Ukuran | 10.1 |
| Aplikasi | PAD |
| Resolusi | 1280×800 |
| Komposisi | CELL |
| Kecerahan | 0 |
| CR | 700:1 |
| Warna | 16.7M |
| Lampu latar | No B/L |
| Antarmuka | TTL |
| merek panel | CHIMEI INNOLUX |
| model panel | HE101NA-02C |
| tipe panel | a-Si TFT-LCD , CELL |
| ukuran panel | 10.1 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 216.96×135.6 mm |
| garis besar | 224.21×145×1.43 mm |
| permukaan | Glare (Haze 0%) |
| kedalaman kaca | 0.50+0.50 mm |
| rasio kontras | 700:1 (Typ.) |
| menampilkan warna | 16.7M (8-bit) |
| waktu merespon | 10/20 (Typ.)(Tr/Td) |
| sudut pandang | 75/70/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| antarmuka sinyal | Parallel RGB (1 ch, 8-bit), 40 pins |
| tegangan masukan | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplikasi | PAD |
