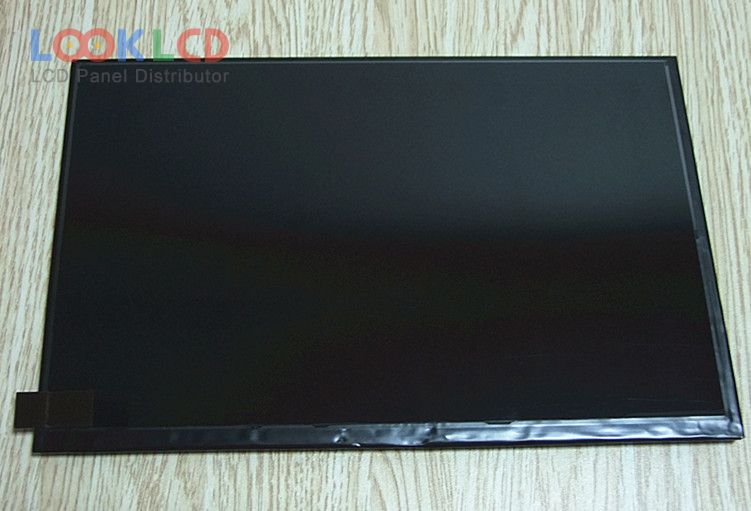

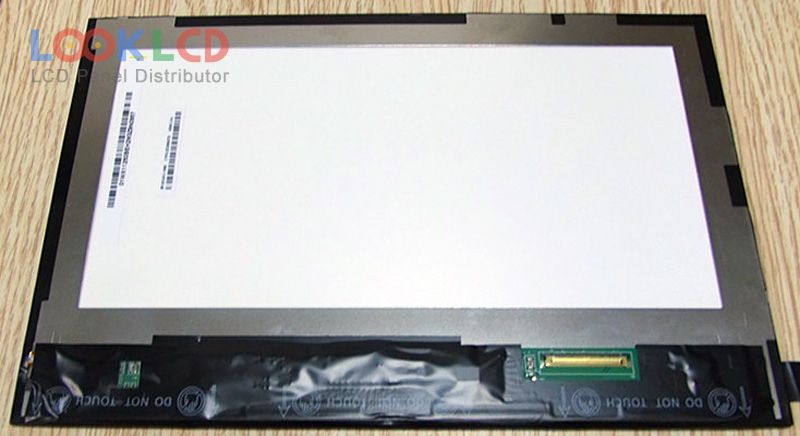

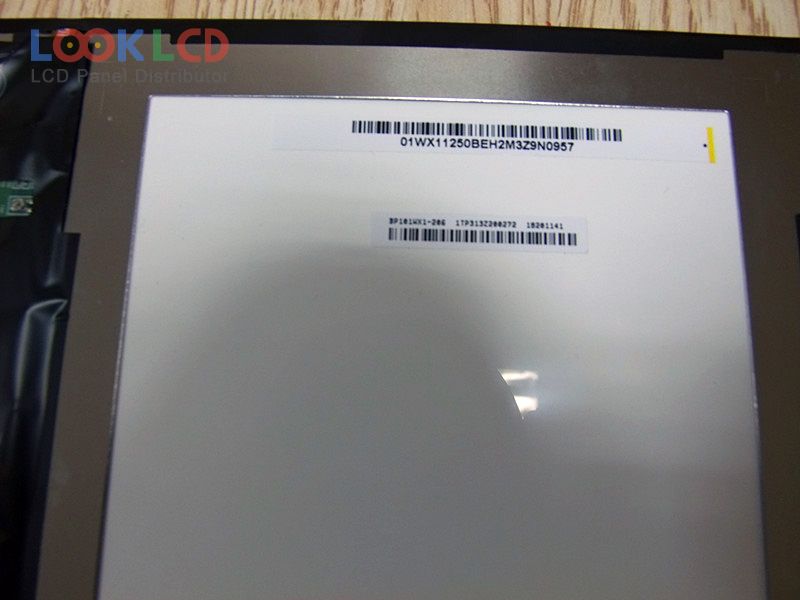

| Nomor Bagian | BP101WX1-206 |
| Merek | BOE |
| Ukuran | 10.1 |
| Aplikasi | PAD |
| Resolusi | 1280×800 |
| Komposisi | LCM |
| Kecerahan | 330 |
| CR | 600:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | BOE |
| model panel | BP101WX1-206 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 10.1 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| mode tampilan | ADS, Normally Black, Transmissive |
| daerah aktif | 216.96×135.6 mm |
| garis besar | 228.6×149.2×4.59 mm |
| permukaan | Hard coating (3H), Antireflection |
| kecerahan | 330 cd/m² (Typ.) |
| rasio kontras | 600:1 (Min.) |
| menampilkan warna | 16.7M (6-bit + Hi-FRC), CIE193150% |
| waktu merespon | 25 (Typ.)(Tr+Td) |
| sudut pandang | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antarmuka sinyal | LVDS (1 ch, 8-bit), 40 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | PAD |
