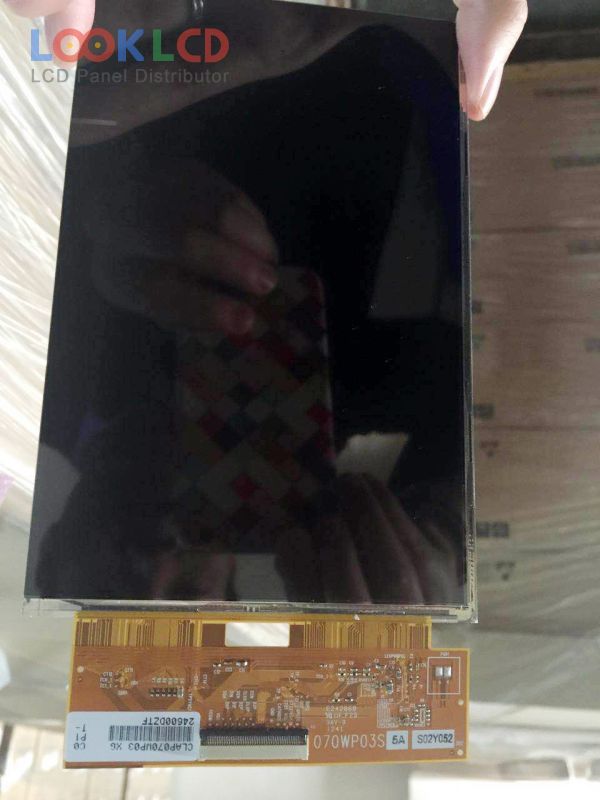

| Nomor Bagian | CLAP070WP03XG |
| Merek | CPT |
| Ukuran | 7.0 |
| Aplikasi | PAD |
| Resolusi | 800×1280 |
| Komposisi | CELL |
| Kecerahan | 0 |
| CR | 700:1 |
| Warna | 16.7M |
| Lampu latar | No B/L |
| Antarmuka | LVDS |
| merek panel | CPT |
| model panel | CLAP070WP03XG |
| tipe panel | a-Si TFT-LCD , CELL |
| ukuran panel | 7.0 inch |
| resolusi | 800(RGB)×1280 , WXGA |
| mode tampilan | HFFS, Normally Black, Transmissive |
| daerah aktif | 94.2×150.72 mm |
| garis besar | 102.1×158.92×0.87 mm |
| permukaan | |
| kedalaman kaca | 0.30+0.30 mm |
| keterusan | 3.66% (Typ.)(with Polarizer) |
| rasio kontras | 700:1 (Typ.) |
| menampilkan warna | 16.7M (8-bit) |
| waktu merespon | 50 (Max.)(Tr+Td) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| antarmuka sinyal | LVDS (1 ch, 8-bit), 40 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | PAD |
| A070VW08 V2 | AUO | 7.0 | 800×480 |
| C070VW01 V0 | AUO | 7.0 | 800×480 |
| CLAA070JA1BCW | CPT | 7.0 | 480×234 |
| CLAP070WP03XG | CPT | 7.0 | 800×1280 |
| HV070WX2-100 | HYDIS | 7.0 | 800×1280 |
| LB070WV1-TD08 | LG Display | 7.0 | 800×480 |
| LMS700KF07 | Samsung | 7.0 | 800×480 |
| LTA070B052F | TOSHIBA | 7.0 | 800×480 |
| LW700AT9003 | Innolux | 7.0 | 800×480 |
| TM070WA-22L06 | SANYO | 7.0 | 480×234 |
| B080EAN01.1 | AUO | 8.0 | 800×1280 |
| B101EAN02.2 | AUO | 10.1 | 800×1280 |
| B101EVT03.1 | AUO | 10.1 | 1280×800 |
| B116XAN03.1 HW0A | AUO | 11.6 | 1366×768 |
| HSD101PWW1-A00-C40 | HannStar | 10.1 | 1280×800 |
| LP101WH4-SLAF | LG Display | 10.1 | 1366×768 |
| LTL106HL02-001 | Samsung | 10.6 | 1920×1080 |
| N080ICE-GB0 Rev.A1 | Innolux | 8.0 | 800×1280 |
| TFTMD070021 | JDI | 7.0 | 1200×1920 |
| TV080X0M-NS0 | BOE | 8.0 | 768×1024 |
