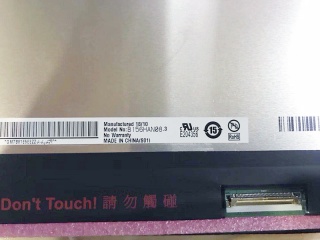

| Nomor Bagian | B156HAN08.3 |
| Merek | AUO |
| Ukuran | 15.6 |
| Aplikasi | Laptop Gaming |
| Resolusi | 1920×1080 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antarmuka | eDP |
| merek panel | AUO |
| model panel | B156HAN08.3 (AUO83ED) |
| ukuran panel | 15.6" |
| tipe panel | a-Si TFT-LCD, LCM |
| resolusi | 1920(RGB)×1080, FHD, 141PPI |
| format piksel | RGB Vertical Stripe |
| area tampilan | 344.16(W)×193.59(H) mm |
| bukaan bezel | - |
| ukuran garis besar | 350.66(W)×216.15(H) mm |
| permukaan | - |
| kecerahan | - |
| rasio kontras | 800:1 (Typ.) (TM) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10) |
| mode tampilan | AHVA, Normally Black, Transmissive |
| tampilan terbaik di | Symmetry |
| waktu merespon | 9 (Typ.)(Tr+Td) |
| menampilkan warna | 16.7M |
| jenis lampu | WLED , 15K hours , With LED Driver |
| frekuensi | 144Hz |
| layar sentuh | Without |
| gaya bentuk | Slim (PCBA Flat, T≤3.2mm) |
| aplikasi | Laptop Gaming |
| antarmuka sinyal | eDP (4 Lanes) , 40 pins Connector |
| tegangan masukan | 3.3/3.6V (Min./Max.) |
| lingkungan | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
