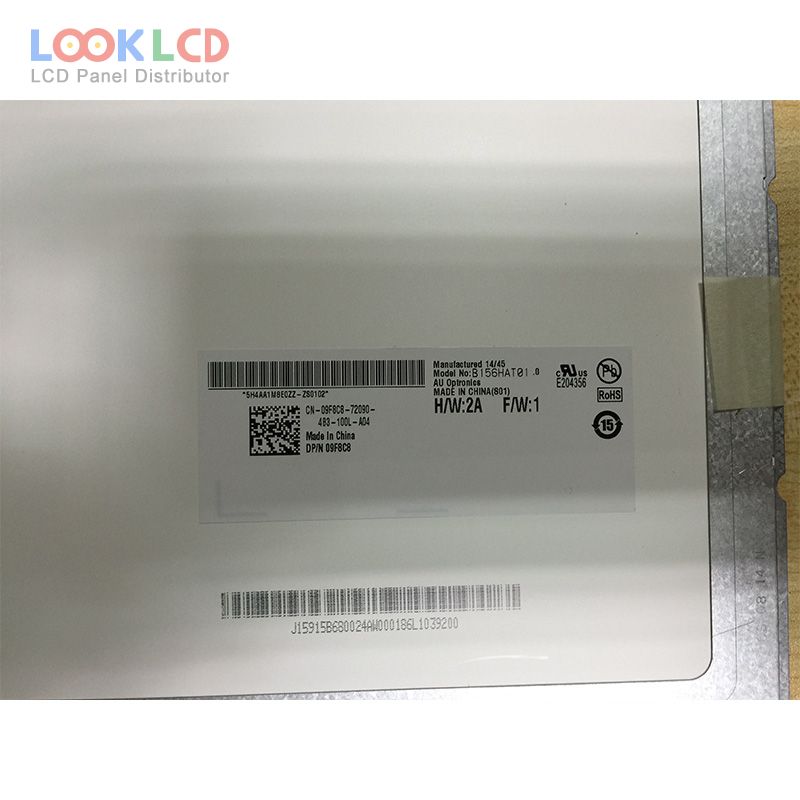

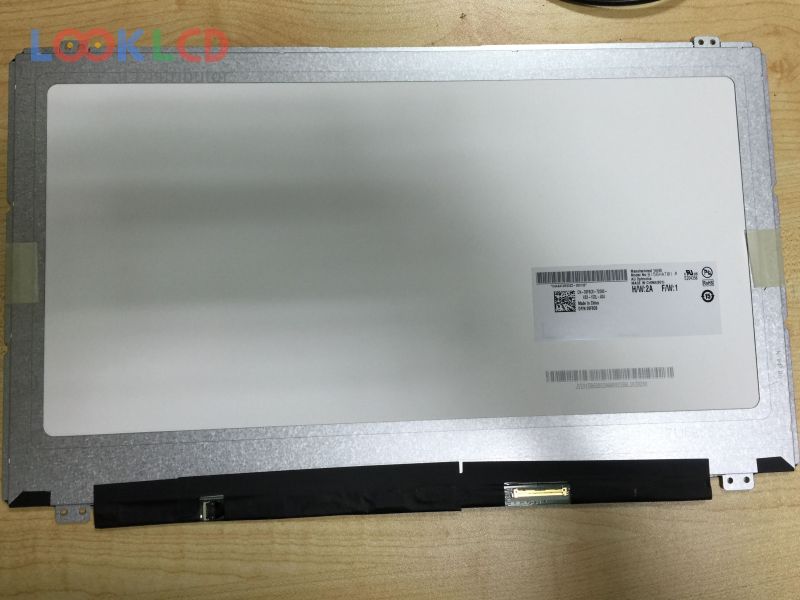

| Nomor Bagian | B156HAT01.0 |
| Merek | AUO |
| Ukuran | 15.6 |
| Aplikasi | NBPC |
| Resolusi | 1920×1080 |
| Komposisi | LCM |
| Kecerahan | 270 |
| CR | 800:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | eDP |
| merek panel | AUO |
| model panel | B156HAT01.0 |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 15.6 inch |
| resolusi | 1920(RGB)×1080 , FHD |
| mode tampilan | AHVA, Normally Black, Transmissive |
| daerah aktif | 344.16×193.59 mm |
| garis besar | 366.38×225.31×5.4 mm |
| gaya bentuk | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| permukaan | Hard coating (7H) |
| kecerahan | 270 cd/m² (Typ.) |
| rasio kontras | 800:1 (Typ.) |
| menampilkan warna | 262K (6-bit), CIE193172% |
| waktu merespon | 25 (Typ.)(Tr+Td) |
| sudut pandang | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |

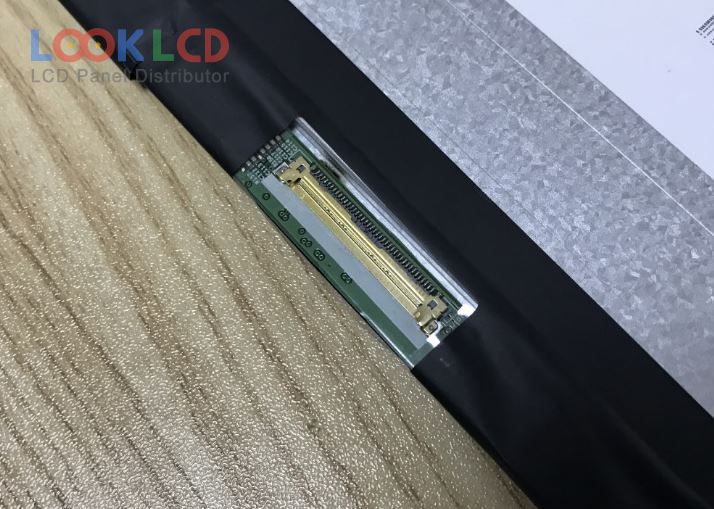

| antarmuka sinyal | eDP (2 Lanes), 40 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | NBPC |
