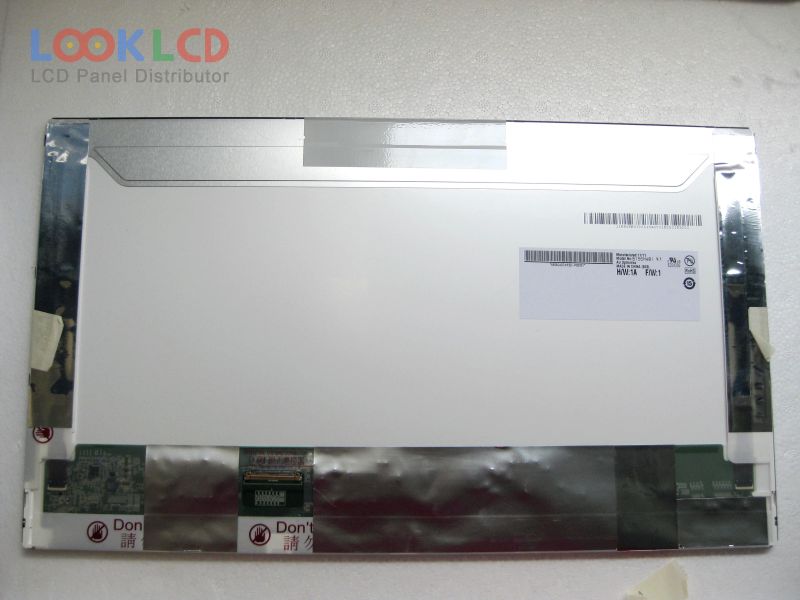

| Nomor Bagian | B156HW01 V7 |
| Merek | AUO |
| Ukuran | 15.6 |
| Aplikasi | NBPC |
| Resolusi | 1920×1080 |
| Komposisi | LCM |
| Kecerahan | 270 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antarmuka | LVDS |
| merek panel | AUO |
| model panel | B156HW01 V7 20 Compatible model |
| tipe panel | a-Si TFT-LCD , LCM |
| ukuran panel | 15.6 inch |
| resolusi | 1920(RGB)×1080 , FHD |
| mode tampilan | TN, Normally White, Transmissive |
| daerah aktif | 344.16×193.59 mm |
| garis besar | 359.3×209.5×5.7 mm |
| gaya bentuk | Wedge (PCBA Bent, Depth ≥5.2mm) |
| permukaan | Glare (Haze 0%), Hard coating (3H), Reflection 5.0% (Max.) |
| kecerahan | 270 cd/m² (Typ.) |
| rasio kontras | 500:1 (Typ.) |
| menampilkan warna | 262K (6-bit), CIE193195% |
| waktu merespon | 8 (Typ.)(Tr+Td); |
| sudut pandang | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekuensi | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |

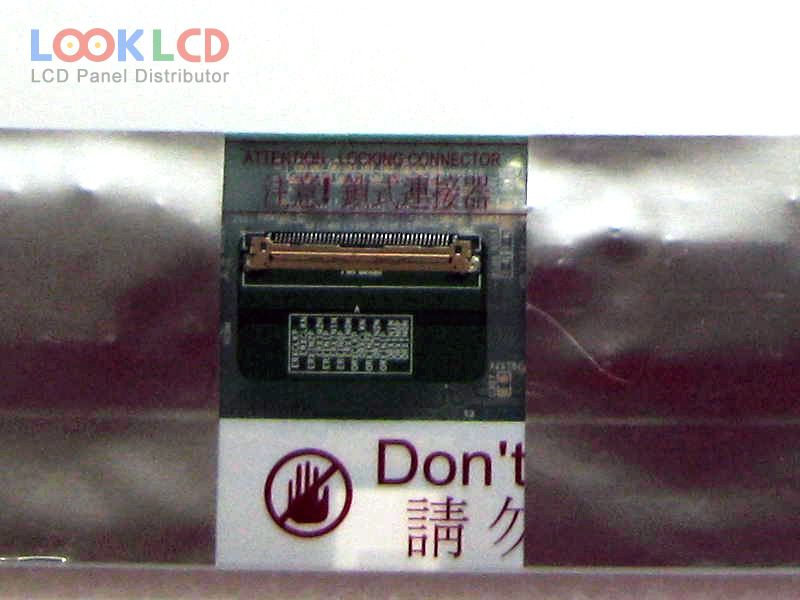

| antarmuka sinyal | LVDS (2 ch, 6-bit), 40 pins |
| tegangan masukan | 3.3V (Typ.) |
| aplikasi | NBPC |
